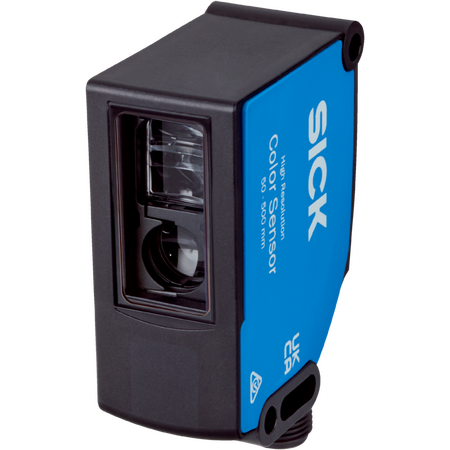

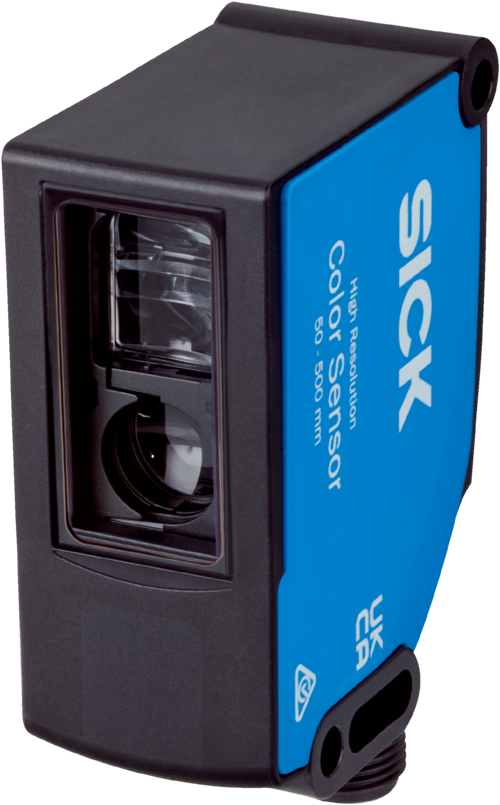

RGB Color Sensor Sensing Distance 50-500mm IP67 Rated SICK
The SICK RGB Color Sensor is designed for precise color detection and sorting in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 50 mm to 500 mm
- Light source: LED RGB with wavelengths 450 nm, 550 nm, 610 nm
- Light spot size: Diameter 8 mm to 32 mm
- Output modes: 2 colors in standard/best fit mode, 3 colors in coded mode
- Sensitivity adjustment: Continuous from 0 to 999
- Switching frequency: 4 kHz
- Response time: 120 µs
- Jitter: 60 µs
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: Less than 150 mA
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: VISTAL®
- Optics material: Glass
- Connection type: M12, 5-pin plug
- Safety rating: LED risk group 2
- MTTFD: 179.9 years
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 500 mm
- S-housing design with LED RGB light source
- Long side light emission with round, large light spot
- Single and multi-value teach-in modes
- Color mode options: Color only or Color plus Illumination
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- IO-Link V1.1.2 communication interface
- Push-pull PNP/NPN switching outputs with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for harsh environments
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor wiring to ensure proper setup and safety compliance.
Applications
- Industrial automation for color detection and sorting
- Quality control in manufacturing processes
- Packaging and labeling verification
- Material identification and inspection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
- Supports precise detection reducing waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBGAD4115AA10Z RGB LED Color Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
