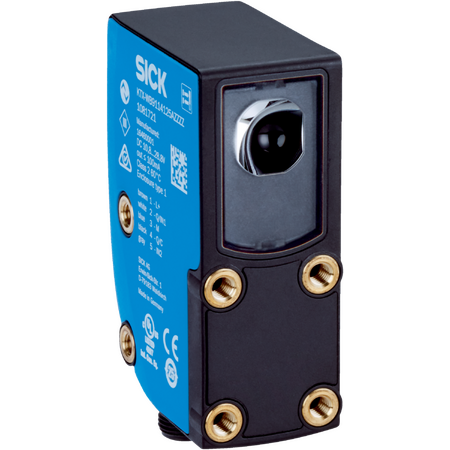

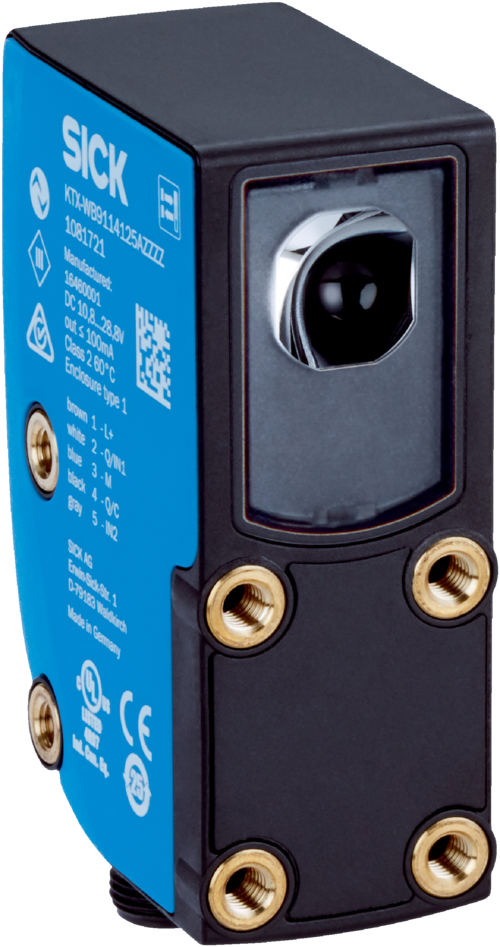

RGB LED Proximity Sensor IP67 Rated 50 kHz Switching Frequency Variant-12 SICK

BRAND: SICK
SKU: 1078097
$1,478.70 List price: $1,858.50
+ −
30 Days Return Electricians Unlock Trade Access
The RGB LED Proximity Sensor is designed for industrial automation, featuring a robust IP67 rated enclosure and a fast 10 µs response time.
Technical Specifications
  • Supply voltage: 10.8 V DC to 28.8 V DC
  • Current consumption: less than 100 mA
  • Switching frequency: 50 kHz
  • Response time: 10 µs
  • Output type: PNP with max output current 100 mA
  • Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
  • Light emission: Long side of housing
  • Light spot size: 0.9 mm x 3.8 mm
  • Connection type: Plug, M12, 5-pin
  • Housing material: VISTAL®
  • Optics material: COP
  • Protection: Reverse polarity, short-circuit, interference pulse suppression
  • Dimensions (H x L x W): 53mm x 79mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Standard device type with large housing design
  • RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
  • Sensing distance up to 13 mm with ±5 mm tolerance
  • 1-point and 2-point teach-in modes, teach-in dynamic, and auto mode
  • Light/dark switching output function with adjustable delay time
  • Protection class III with reverse polarity and short-circuit protection
  • IP67 rated enclosure for dust and water resistance
  • Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Standard sensing applications requiring RGB LED indication
  • Environments requiring IP67 rated sensors
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable IP67 housing reduces replacement frequency and waste
  • Low current consumption (<100 mA) contributes to energy efficiency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK KTX-WP91141252ZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable RGB LED indication.
