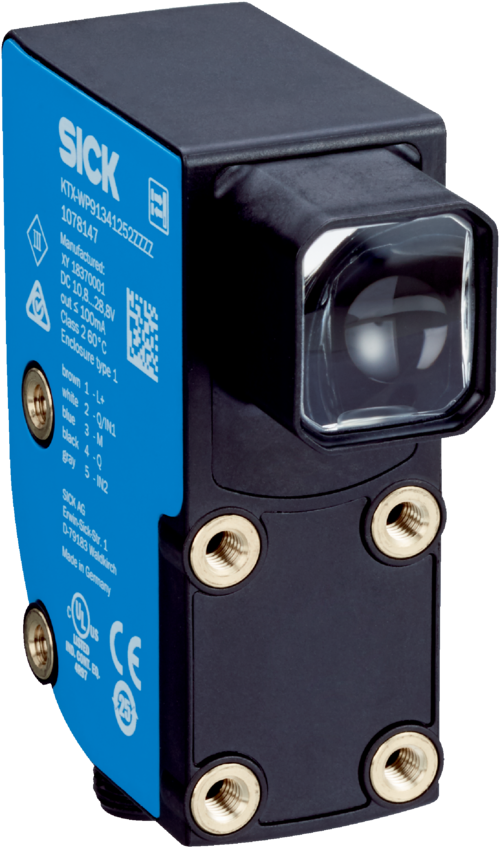

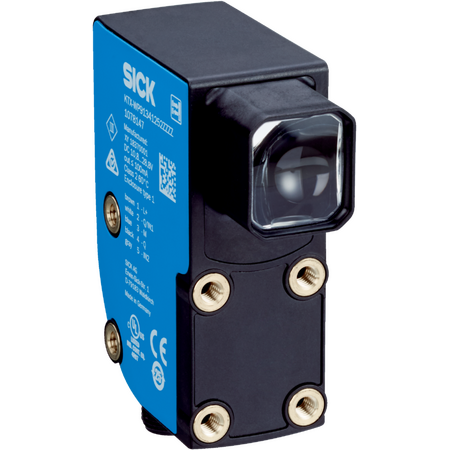

RGB LED Sensor Long Distance Proximity IP67 Rated Variant-2 SICK

BRAND: SICK
SKU: 1220799
$1,675.00 List price: $2,105.30
+ −
30 Days Return Electricians Unlock Trade Access
The RGB LED Sensor is designed for precise object detection with a sensing distance of up to 150 mm and multiple teach-in modes
Technical Specifications
  • Sensing distance: ≤ 150 mm with ±8 mm tolerance
  • Light source: LED RGB (470 nm, 525 nm, 625 nm)
  • Light spot size: Ø 3.3 mm, round
  • Teach-in modes: 1-point, 2-point, dynamic, auto
  • Output function: Light/dark switching
  • Supply voltage: 10.8 V DC to 28.8 V DC
  • Current consumption: < 100 mA
  • Switching frequency: 6.25 kHz
  • Response time: 80 µs
  • Switching output: Push-pull PNP/NPN, max 100 mA
  • Protection class: III
  • Enclosure rating: IP67
  • Operating temperature: -20 °C to +60 °C
  • Connection type: Plug, M12, 5-pin
  • Dimensions (H x L x W): 53mm x 79mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Standard device type with large housing design
  • Sensing distance up to 150 mm with ±8 mm tolerance
  • LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
  • Light emission from long side of housing with round light spot Ø 3.3 mm
  • Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
  • Adjustable delay time and light/dark switching output function
  • IO-Link communication interface with digital inputs and outputs
  • Push-pull PNP/NPN switching output with max 100 mA output current
  • Protection class III with reverse polarity and short-circuit protection
  • Robust housing material VISTAL® and glass optics
  • IP67 rated enclosure for dust and water protection
  • Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Quality control in manufacturing
  • Material handling and logistics
  • Special applications requiring long sensing distance
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable IP67 housing minimizes environmental damage and extends product life
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.

Available Now

The SICK KTX-WB9494125AZZZZ sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
