Trade Discount 21%

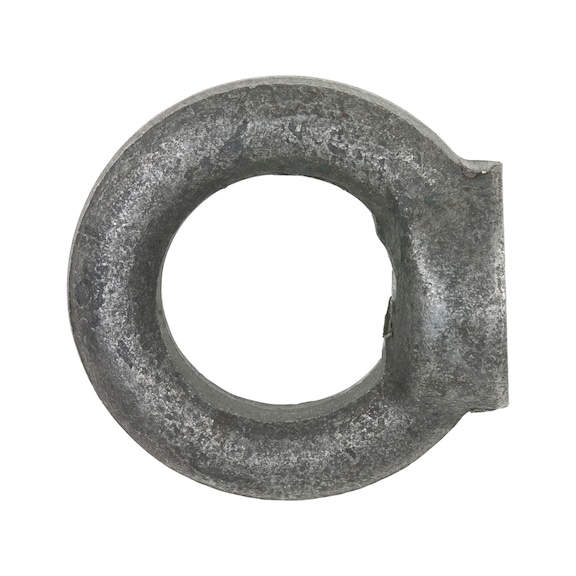

Ring Nut DIN 582 Steel C15E M6 Forged Eye Nut 75 kg Load Capacity Wurth
The Ring Nut DIN 582 Steel C15E is a robust M6 forged eye nut designed for lifting and securing loads in industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter (d): M6
- Internal diameter (d1): 20 mm
- Outer diameter (d2): 36 mm
- Diameter of contact surface (d3): 20 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 75 kg
- Nominal diameter: 6 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 20mm x 20mm x 36mm
- Weight: 0.05 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel, 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided instructions to ensure safety and compliance.
Applications
- Used for lifting and securing loads in industrial and construction settings
- Suitable for machinery, rigging, and safety anchoring
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Nut DIN 582 Steel C15E Plain M6 - 5 PCS is available for immediate purchase, ideal for industrial lifting and securing applications.
