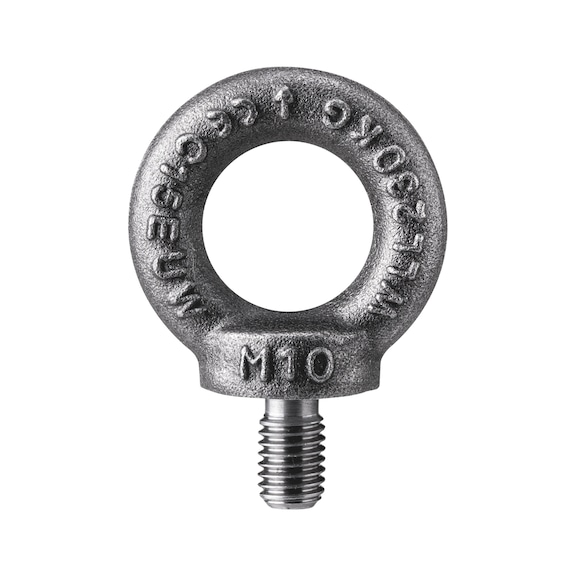

Ring Screw DIN 580 | Case Hardening Steel C15E | 340 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Screw DIN 580 is crafted from durable case hardening steel C15E, offering a robust 340 kg load capacity, making it ideal for industrial lifting and rigging applications. With a plain surface finish and compliance with DIN 580 standards, this lifting eye bolt ensures safety and reliability for construction and machinery fastening tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Screw DIN 580 | Case Hardening Steel C15E | 340 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 2959012
Alternatively Known As: Lifting eye bolt, Ring bolt, Eye screw, DIN 580 lifting ring
Technical Specifications
- Thread type x nominal diameter (d1): M12
- Diameter of contact surface (d2): 30 mm
- Outer diameter (d3): 54 mm
- Internal diameter (d4): 30 mm
- Height (h1): 53 mm
- Length (l1): 20.5 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Max. load capacity: 340 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.75 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 17 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 53mm x 20.5mm x 54mm
- Weight: 0.15 kg
Key Features
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- RoHS-compliant
- Max load capacity of 340 kg
- Metric thread with standard pitch of 1.75 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Industrial lifting and rigging
- Construction and building applications
- Machinery and equipment fastening
- General purpose load securing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Screw DIN 580 Steel C15E Plain M12 5 PCS is available for immediate purchase, ideal for industrial and construction lifting applications.
