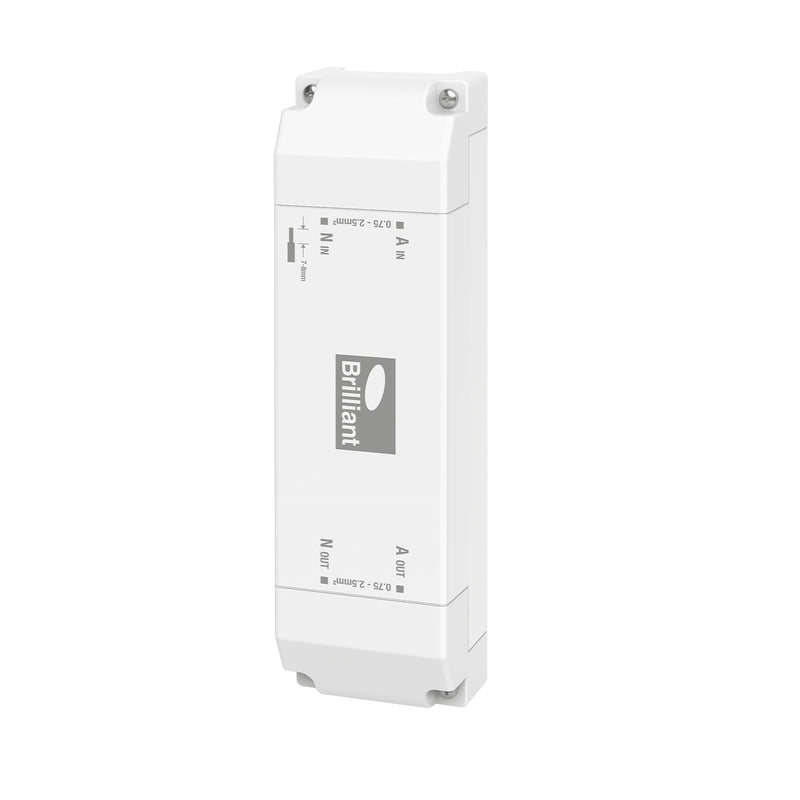

Ripple Filter 750Hz Lighting Circuit Durable Brilliant Lighting
Brilliant Lighting 750Hz ripple filter, 230-240V AC, 10A, durable insulated housing. Prevents flicker from AU ripple control signals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ripple Filter 750Hz | Filters 750Hz Signals | Prevents Flickering | Durable Housing | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: BRF750
Alternatively Known As: Ripple Control Filter, 750Hz Ripple Filter, Lighting Ripple Filter, BRF750, Ripple Signal Suppressor
Technical Specifications
- Rated Frequency: 750Hz
- Voltage: 230-240V AC
- Current Rating: 10A
- Mounting: Surface mount
- Application: Ripple signal filtration for lighting circuits
- Enclosure: Durable, insulated housing
- Operating Temperature: -10°C to 50°C
- Dimensions (H x L x W): 80mm x 200mm x 120mm
- Weight: 2.5 kg
Key Features
- Effectively filters out 750Hz ripple control signals
- Prevents flickering and interference in lighting circuits
- Designed for compatibility with Australian ripple control systems
- Robust construction for reliable long-term operation
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial lighting circuits
- Apartment complexes with ripple control systems
- Industrial facilities requiring ripple signal filtration
- Any installation where unwanted ripple control signals affect lighting
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces unnecessary energy consumption by preventing lighting malfunctions
- Extends the lifespan of lighting equipment by eliminating ripple-induced flicker
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Brilliant Lighting BRF750 Ripple Filter 750Hz is available for immediate purchase. Ideal for residential, commercial, and industrial lighting circuits requiring ripple signal filtration.
