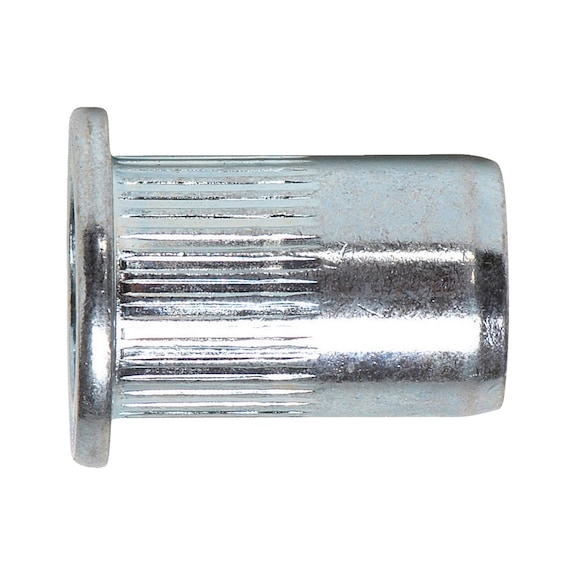

Rivet Nut M6 with Flat Head & Knurled Shank | Zinc-Plated Steel | 10 PCS | by Wurth
Rivet nut M6 with a flat head and knurled shank is perfect for fastening thin-walled structural elements in automotive, construction, and manufacturing applications. Made from zinc-plated steel, it offers enhanced resistance to turning and secure fastening for materials like aluminum, plastic, and fiberglass. Ideal for professional installation, this product ensures compliance with safety standards and environmental regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M6 with Flat Head & Knurled Shank | Zinc-Plated Steel | 10 PCS | by Wurth
Brand: Wurth
SKU: 9482206
Alternatively Known As: Blind rivet nut, Rivnut, Nutsert, Threaded insert, Rivet insert nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter: M6
- Length: 18.5 mm
- Head diameter: 12.0 mm
- Outer diameter: 8.9 mm
- Head height: 1.6 mm
- Grip range: 3.0-5.5 mm
- Tensile fracture load: 17640 N
- Shear-fracture load: 3430 N
- Max. tightening torque: 20 Nm
- Drill hole diameter: 9.1 mm
- Shank detail: Knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 18.5mm x 18.5mm x 12mm
- Weight: 0.02 kg
Key Features
- Zinc-plated steel with blue passivation
- Chrome (VI)-free, compliant with EU End of Life Vehicles Directive
- Combines blind rivet and screw connection for secure fastening
- Knurled shaft increases tightening torque and resistance to turning
- Suitable for fastening all materials, especially aluminium, plastic, and fibreglass
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct setting and torque application.
Applications
- Fastening thin-walled structural elements
- Suitable for aluminium, plastic, and fibreglass materials
- Used in automotive, construction, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome (VI)-free surface treatment reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M6 is available for immediate purchase. Ideal for fastening applications in automotive, construction, and manufacturing sectors.
