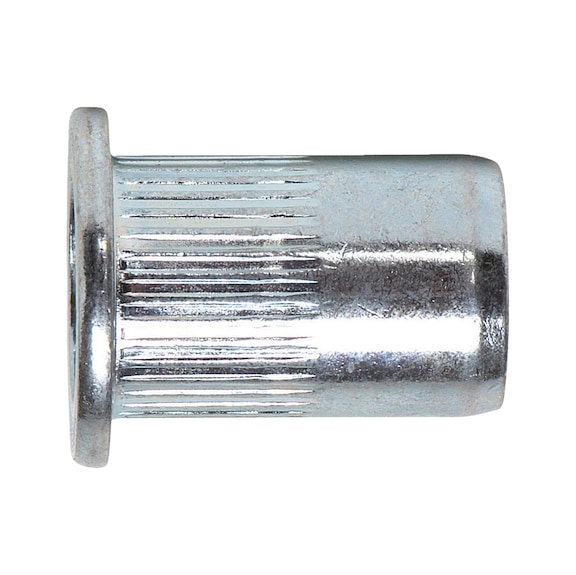

Rivet Nut M8 with Flat Head & Knurled Shank | Zinc-Plated Steel | 10 Pack | by Wurth
Rivet nut M8 with a flat head and knurled shank is perfect for secure fastening in automotive, construction, and manufacturing applications. Made from zinc-plated steel, it offers excellent resistance to turning and is compliant with EU regulations. Ideal for use with aluminium, plastic, and fibreglass materials, this 10-pack ensures you have the right components for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M8 with Flat Head & Knurled Shank | Zinc-Plated Steel | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482208
Alternatively Known As: Blind rivet nut, Rivnut, Nutsert, Threaded insert, Rivet insert nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes

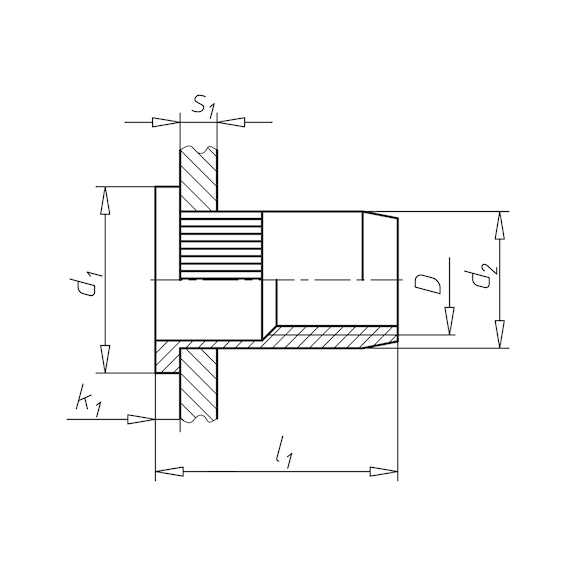

- Thread type x nominal diameter (D): M8
- Length (l1): 20 mm
- Head diameter (d1): 15.0 mm
- Outer diameter (d2): 10.9 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 27440 N
- Shear-fracture load: 4410 N
- Max. tightening torque: 29 Nm
- Drill hole diameter: 11.1 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 20mm x 20mm x 15mm
- Weight: 0.02 kg
Key Features
- Zinc-plated steel with blue passivation
- Chrome (VI)-free, compliant with EU End of Life Vehicles Directive

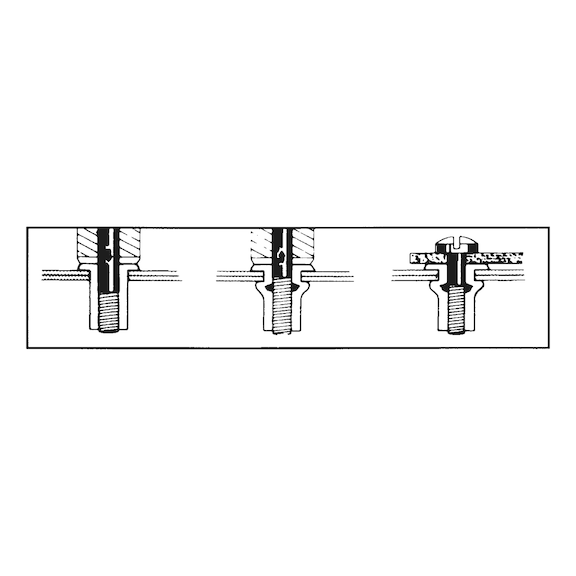

- Combines blind rivet and screw connection for secure fastening
- Knurled shaft increases tightening torque and resistance to turning
- Suitable for fastening all materials, especially aluminium, plastic, and fibreglass
Professional Installation Requirements
- Installation requires appropriate tools for blind rivet nuts and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Fastening thin-walled structural elements
- Suitable for aluminium, plastic, and fibreglass materials
- Used in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome (VI)-free surface treatment reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M8 is available for immediate purchase, ideal for fastening applications in automotive, construction, and manufacturing sectors.
