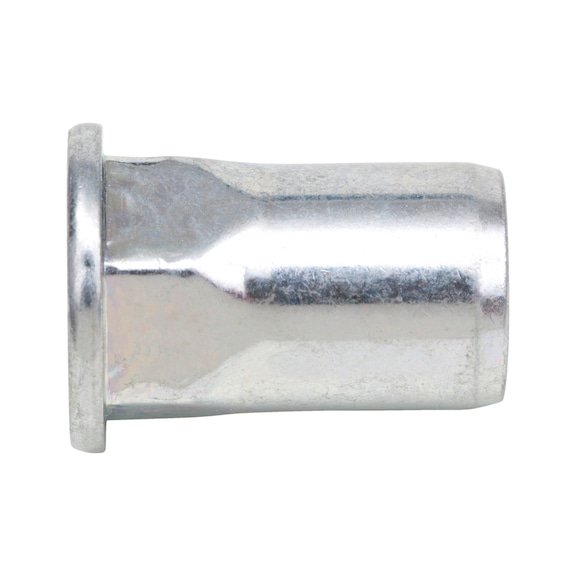

Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Anti-Rotation Lock | Dome Head | @Pack of 100 | by Wurth
Rivet nut with partial hexagon shank is designed for secure fastening in industrial and mechanical applications. Made from zinc-plated steel, it features an excellent anti-rotation lock and is chromium(VI)-free for environmental safety. Ideal for fastening coated components, this pack of 100 ensures you have the right tools for your assembly needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Anti-Rotation Lock | Dome Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 9483068
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Nut, Hex Shank Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M8
- Width across flats: 11 mm
- Length (l1): 19 mm
- Head diameter (d1): 14.5 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 21500 N
- Shear-fracture load: 3000 N
- Max. tightening torque: 22 Nm
- Shank detail: With partial hexagon shank
- Head type: Truss head
- Dimensions (H x L x W): 19mm x 19mm x 11mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation
- Chromium(VI)-free for environmental safety
- Excellent anti-rotation lock
- Partial hexagon shank design
- Truss (dome) head type
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Used for fastening coated components
- Ideal for mechanical assembly requiring anti-rotation lock
- Suitable for industrial and construction applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free passivation reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Rivet Nut with partial hexagon shank and dome head 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
