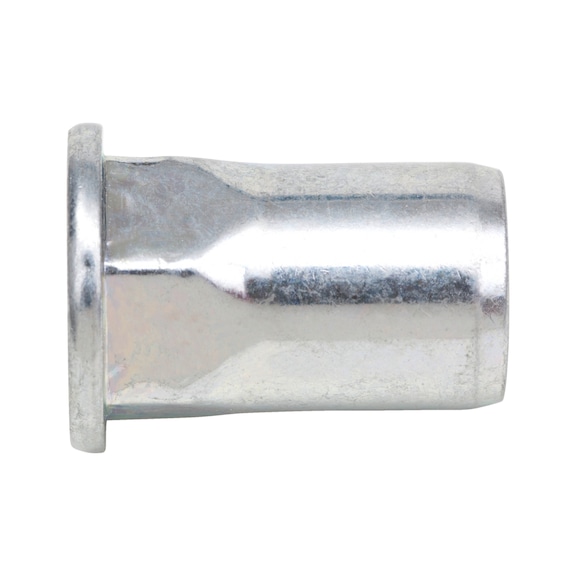

Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Dome Head Design | @Pack of 100 | by Wurth
Rivet nut with partial hexagon shank and dome head is perfect for fastening in coated components, offering excellent anti-rotation lock and a robust zinc-plated steel construction. Ideal for industrial and mechanical assembly, this 100 PCS pack ensures reliable performance in demanding applications while being RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Dome Head Design | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 9483064
Alternatively Known As: Rivet Nut, Hex Shank Rivet Nut, Dome Head Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M4
- Width across flats: 6 mm
- Length (l1): 13 mm
- Head diameter (d1): 9.5 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 4900 N
- Shear-fracture load: 1400 N
- Max. tightening torque: 5 Nm
- Shank detail: With partial hexagon shank
- Head type: Truss head
- Dimensions (H x L x W): 13mm x 13mm x 6mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation
- Chromium(VI)-free for environmental safety
- Excellent anti-rotation lock
- Partial hexagon shank design
- Truss (dome) head type
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Used for fastening in coated components
- Suitable for mechanical assembly requiring anti-rotation lock
- Ideal for industrial and manufacturing applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Rivet Nut with partial hexagon shank and dome head 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
