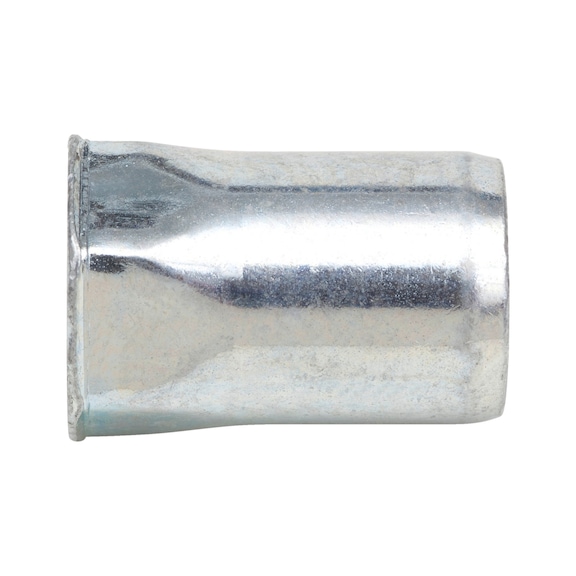

Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | @Pack of 100 | by Wurth
Rivet nut with semi-hexagonal shank is designed for secure fastening in mechanical assemblies. Made from zinc-plated steel, it features an excellent anti-rotation lock and a minimal head protrusion, making it ideal for applications where countersinking is not required. Perfect for industrial use, this pack of 100 ensures you have the right components for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 94830510
Alternatively Known As: Rivet Nut Insert, Threaded Insert Nut, Blind Rivet Nut, Nutsert, Rivnut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated, Chromium(VI)-free
- Thread type x nominal diameter (D): M10
- Width across flats: 13 mm
- Length (l1): 20.5 mm
- Head diameter (d1): 14.5 mm
- Outer diameter (d2): 14.5 mm
- Head height (k1): 0.8 mm
- Min./max. grip range (s1): 0.8-4 mm
- Tensile fracture load: 29400 N
- Shear-fracture load: 3430 N
- Max. tightening torque: 35 Nm
- Head type: Small countersunk head
- Design: With a small countersunk head and partial hexagon shank
- Dimensions (H x L x W): 20.5mm x 20.5mm x 13mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel, blue passivated and Chromium(VI)-free
- Excellent anti-rotation lock
- Minimal head protrusion
- No countersinking of drill holes necessary
- Small countersunk head design with partial hexagon shank
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Use with coated components requiring secure fastening
- Suitable for applications where no countersinking of drill holes is necessary
- Ideal for mechanical assembly and repair tasks requiring anti-rotation lock
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free passivation reduces environmental and health hazards
- Durable zinc plating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with semi-hexagonal shank and dome/countersunk head 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
