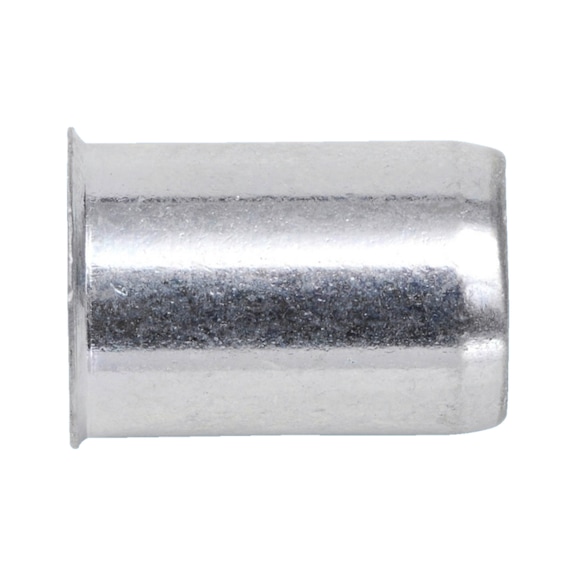

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M8 Thread | 25 PCS | by Wurth
Rivet nut with small countersunk head designed for secure fastening in metal fabrication. Made from zinc-plated steel, it features an M8 thread and is ideal for automotive, construction, and industrial assembly. This product allows for installation from one side, ensuring high-quality connections without the need for countersinking drill holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M8 Thread | 25 PCS | by Wurth
Brand: Wurth
SKU: 91780
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Rivet Threaded Nut
Technical Specifications
- Thread type x nominal diameter (D): M8
- Head diameter (d1): 11.5 mm
- Outer diameter (d2): 10.4 mm
- Length (l1): 16 mm
- Head height (k1): 0.60 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Tensile fracture load: 22000 N
- Shear-fracture load: 5200 N
- Max. tightening torque: 25 Nm
- Drill hole diameter: 10.5 mm
- Head type: Small countersunk head
- Dimensions (H x L x W): 16mm x 11.5mm x 11.5mm
- Weight: 0.05 kg
Key Features
- Can be used as riveted and screwed connections offering secure fastening
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and consistent fastening.
Applications
- Suitable for riveted and screwed connections in metal fabrication
- Installation in closed profiles from one side
- Mounting additional components using conventional screws
- Ideal for automotive, construction, and industrial assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life
- RoHS-compliant material reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Small Countersunk Head Zinc-Plated Steel M8 25 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
