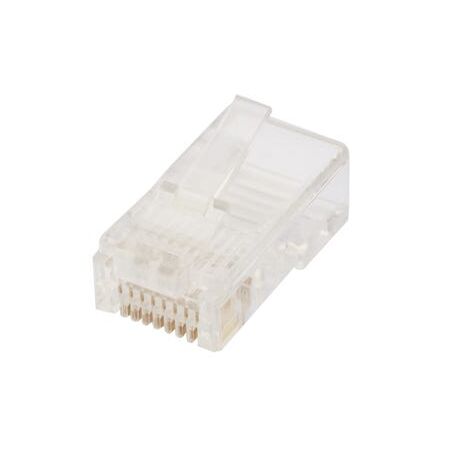

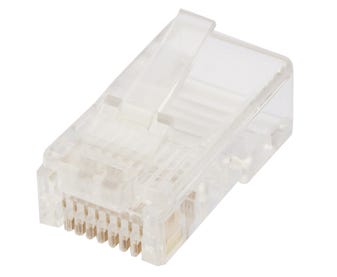

RJ45 Cat6 Plug 8P8C | 50um Gold Plated Pins | Low Contact Resistance | Flame Retardant Housing by Cabac
RJ45 Cat6 plug with 8P8C configuration and 2-piece UTP design—ideal for networking applications. Built for reliable connections, this 10 pack ensures you have the right components for your cabling needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 Cat6 Plug 8P8C | 2 Piece UTP | Ideal for Networking | 10 Pack by Unbranded
Brand: Cabac
SKU: C68P8CUS2P-X
Alternatively Known As: RJ45 Cat6 Plug, Cat6 Modular RJ45 Connector, Ethernet RJ45 Plug, 8P8C Cat6 Connector
Technical Specifications
- Two piece modular RJ45 plug for Cat6 cables
- Unshielded type with 50um gold plated pins
- Conductor O.D. range: 1.09mm to 1.15mm
- Low contact resistance for reliable signal transmission
- Housing made from UL94-V2 flame retardant polycarbonate
- Complies with TIA/EIA 568.2-1 CAT6 standards
- Exceeds Powersum NEXT requirements
- Listed under UL136825
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.01 kg
Key Features
- High quality pins with 50um gold plating
- Low contact resistance
- Housing made from flame retardant UL94-V2 polycarbonate
- Exceeds TIA/EIA 568.2-1 CAT6 standards
- Exceeds Powersum NEXT requirements
- Listed under UL136825
- Available in unshielded and shielded versions
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper termination and compliance with network standards.
Applications
- Telecommunications: Network cabling for data communication
- Data Centers: Structured cabling installations
- Residential and Commercial Networking: Ethernet connections
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Flame retardant housing enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Plug RJ45 8P8C Cat6 2 Piece UTP 10PK is available now for immediate purchase. Ideal for telecommunications and data communication network installations.
