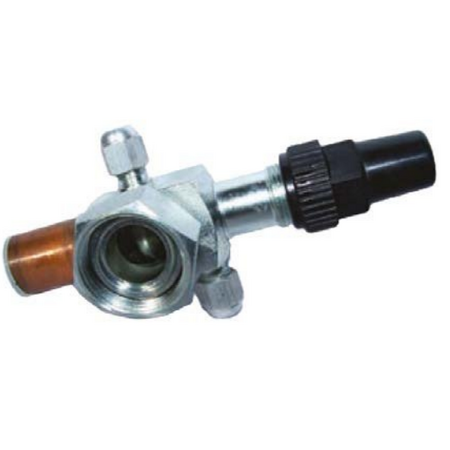

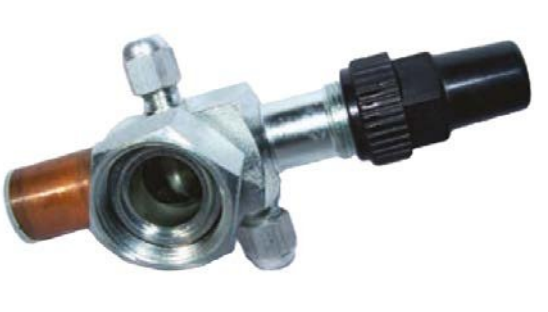

Rotalock Service Valve Dual Access | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Service Valve (Dual Access) is engineered for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With double plated corrosion resistance and solid copper connectors, this valve ensures reliable performance in refrigeration and air conditioning applications. Ideal for professional installation, it supports R-410A compliance for environmentally friendly refrigerants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve Dual Access | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-142030
Alternatively Known As: Rotalock Dual Access Valve, HVAC Service Valve, Refrigeration Service Valve, Copper Connector Valve
Technical Specifications
- High flow port design with lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader capability on lower port
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader capability
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve control
- Refrigeration and air conditioning service and maintenance
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigerating systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Designed for R-410A compliance supporting environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Rotalock Service Valve (Dual Access) 7/8 ID x 1-1/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
