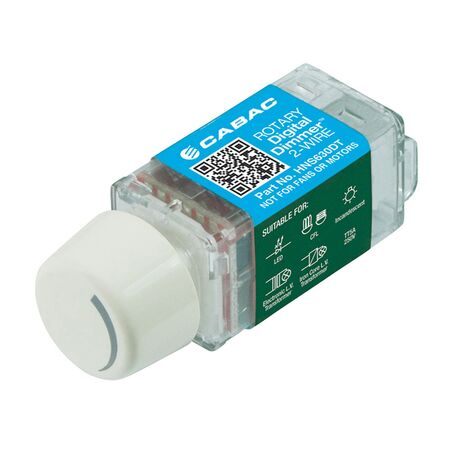

Rotary Digital Dimmer 2 Wire | 350W Max | White Finish
Rotary digital dimmer with 350W max power rating and white finish—ideal for dimmable LED lighting. Built for compatibility with HPM and Clipsal wall plates, featuring rugged protection and programmable brightness.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Digital Dimmer 2 Wire | 350W Max | White Finish
SKU: HNS630DT
Alternatively Known As: Digital Rotary Dimmer Switch, 2-Wire LED Dimmer, CABAC Dimmer, Wall Plate Dimmer Switch
Technical Specifications
- Power Supply Voltage: 230-240Va.c. 50Hz
- Power Rating: 350W max
- Compatible with dimmable LED, CFL dual switch, incandescent, 240V halogen, LV halogen - electronic and iron core lamps
- Requires separate ON/OFF switch
- 2-Wire design not suitable for fans or motors
- Certified to AS/NZS 3100 & CISPR 15 Standards
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Rotary digital dimmer suitable for dimmable LED lighting
- Suits both HPM and Clipsal wall plates with included buttons and knobs
- Requires separate ON/OFF switch
- Compatible with CABAC 3-Wire timers and switches
- Rugged protection against over current, over voltage, and over temperature
- Patented ripple tone rejection
- Programmable minimum brightness
- Designed, engineered, and manufactured in Australia
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Residential lighting control for dimmable LED, CFL dual switch, incandescent, 240V halogen, LV halogen - electronic and iron core lamps
- Compatible with CABAC 3-Wire timers and switches for advanced lighting setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Certified to AS/NZS 3100 & CISPR 15 Standards
Environmental Benefits
- Supports energy-efficient dimmable LED and CFL lighting to reduce power consumption
- Programmable minimum brightness helps extend lamp life and reduce energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to CABAC warranty terms for details.
Available Now
The CABAC Rotary Digital Dimmer 2 Wire 350W Max in White Finish is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
