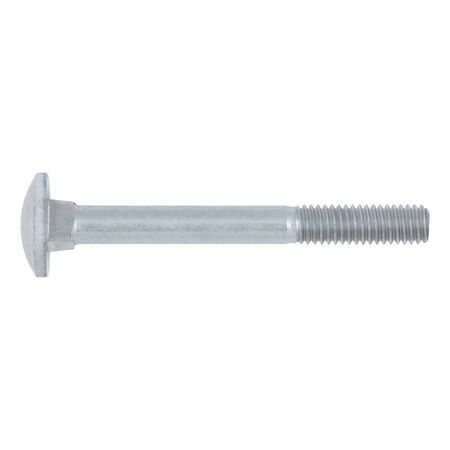

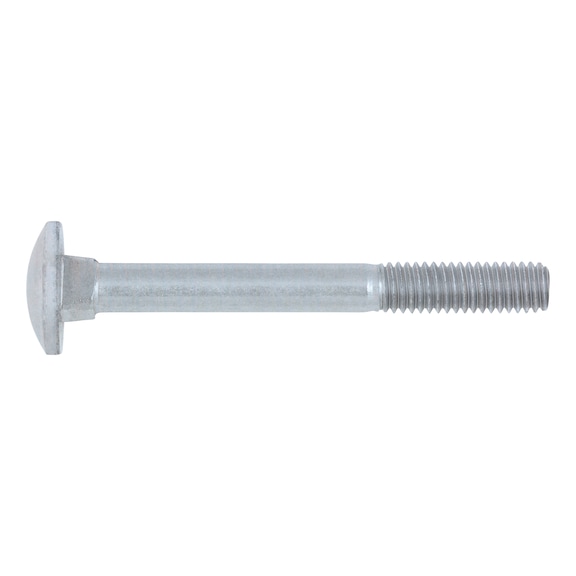

Round Head Screw with Square Neck DIN 603 | Steel | Strength Class 8.8 | Zinc-Plated & Blue Passivated | by WURTH
The Round Head Screw with Square Neck DIN 603 is crafted from high-strength steel, featuring a strength class of 8.8 and a zinc-plated, blue passivated finish for enhanced corrosion resistance. Ideal for mechanical assemblies and construction applications, this screw's flat square neck prevents rotation, ensuring secure fastening in slots. Perfect for industrial and manufacturing needs, it combines durability with functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Round Head Screw with Square Neck DIN 603 | Steel | Strength Class 8.8 | Zinc-Plated & Blue Passivated | by WURTH
Brand: WURTH
SKU: 022395 20
Alternatively Known As: Square Neck Round Head Bolt, DIN 603 Screw, Zinc Plated Round Head Screw
Technical Specifications
- Material: Steel
- Strength Class: 8.8
- Coating: Zinc-plated, blue passivated (A2K)
- Head Type: Round head
- Neck Type: Flat square neck
- Standard: DIN 603
- Dimensions (H x L x W): 20mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Flat square neck prevents screw rotation in slots
- Round head design for aesthetic and functional purposes
- Strength class 8.8 for high tensile strength
- Zinc-plated with blue passivation for corrosion resistance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening with anti-rotation features
- Construction and machinery where screws need to be fixed in slots
- General industrial and manufacturing applications
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Steel material is recyclable contributing to sustainability
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The WURTH Round Head Screw with Square Neck DIN 603 is available for immediate purchase, ideal for industrial, construction, and mechanical fastening applications.
