RSB1-0420C070140BA3BZZZZZZ Photoelectric sensors

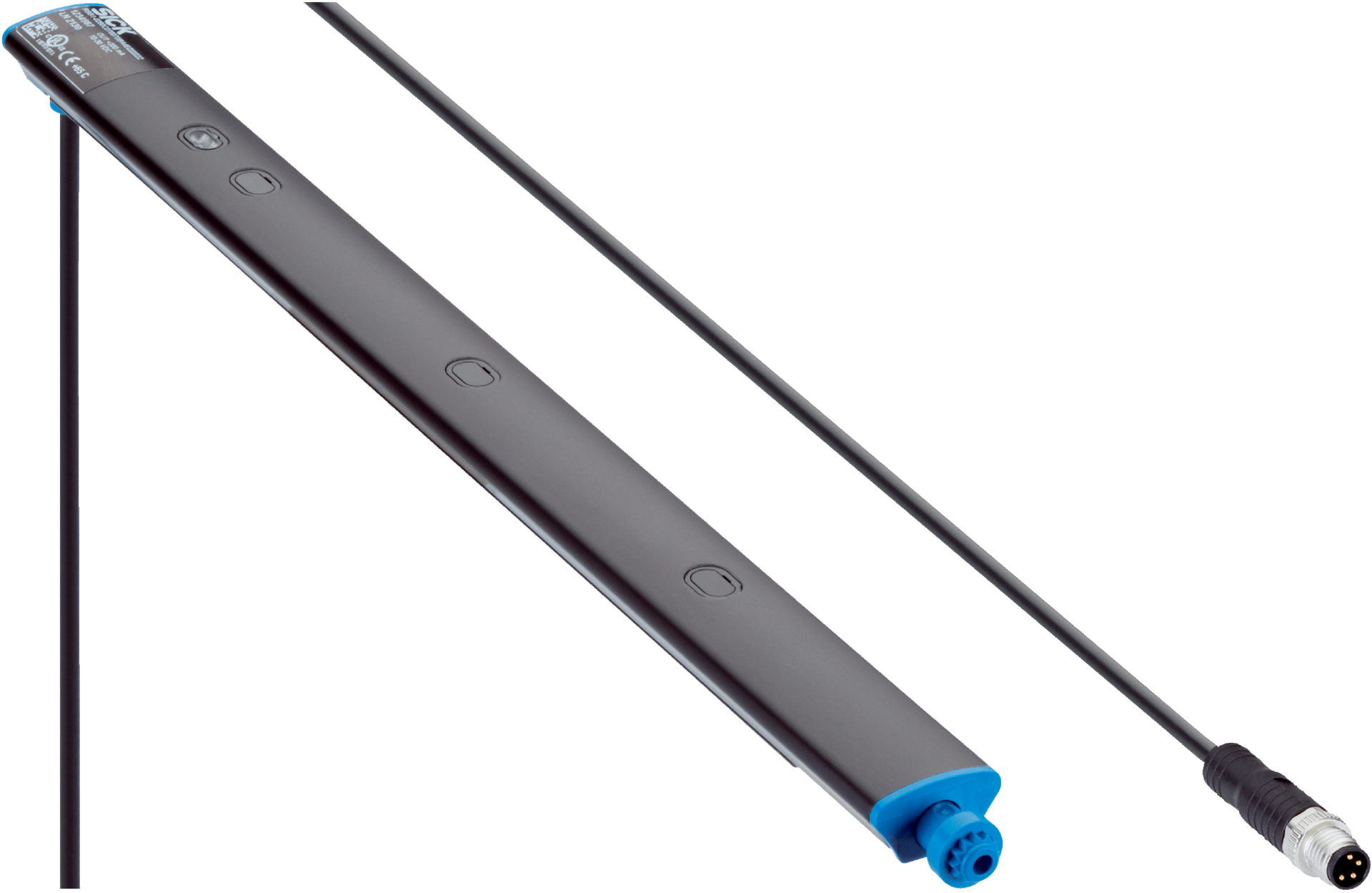

The SICK RSB1-0420C070140BA3BZZZZZZ is a high-performance photoelectric proximity sensor featuring an energetic infrared LED light source
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

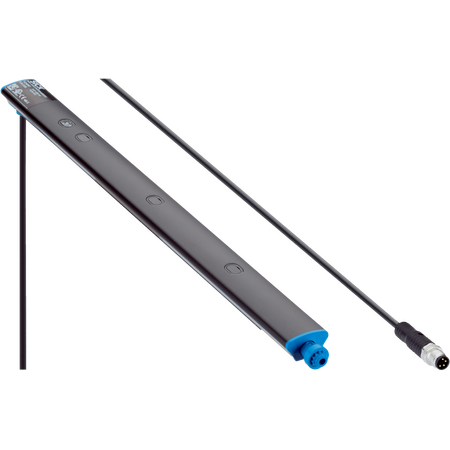

Product Name/Title: RSB1-0420C070140BA3BZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1126029
Alternatively Known As: Photoelectric proximity sensor, Infrared sensor, Optical sensor, SICK photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 15 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED risk group: Free group
- Cable with M8 4-pin connector, 150 mm length
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 17mm x 420mm x 20mm
- Weight: 0.153 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Three beams with 70 mm separation
- LED indicators for power and object detection status
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust metal aluminum anodised housing with plastic PMMA front screen
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
- Durable IP67 rated housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0420C070140BA3BZZZZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
