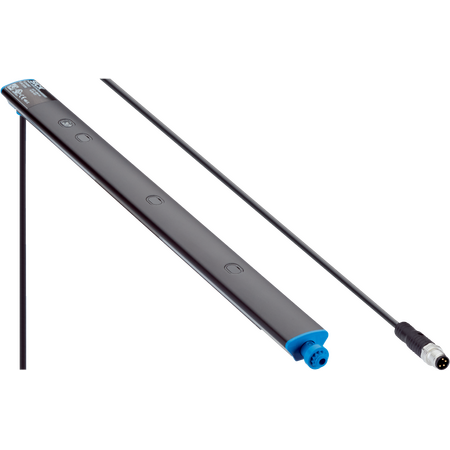

RSB1-0425B200113HK3CZZZZZZ | Photoelectric sensors

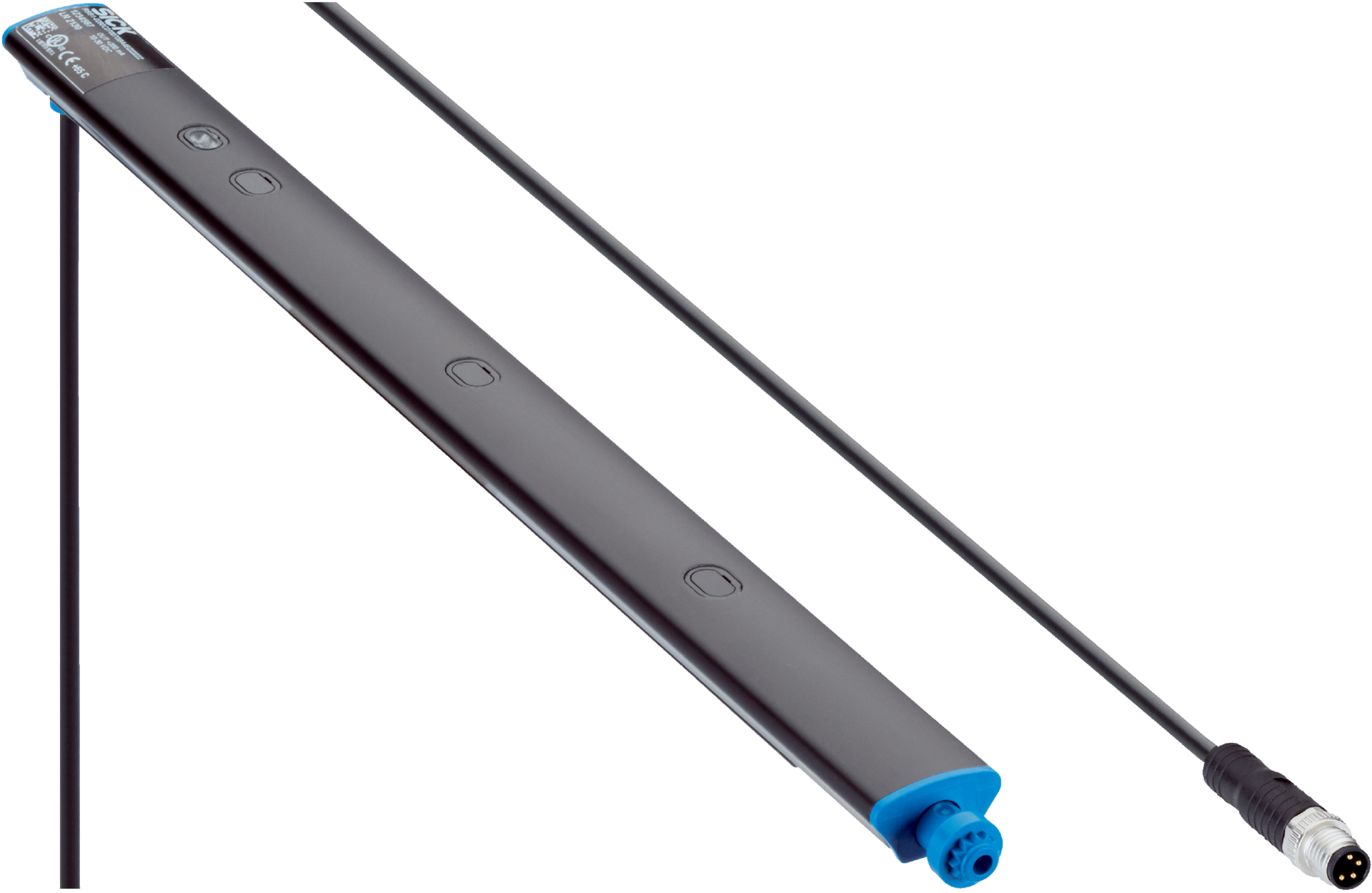

The SICK RSB1-0425B200113HK3CZZZZZZ is a high-performance photoelectric proximity sensor featuring energetic detection, infrared LED light source, and robust IP67 rated aluminum housing, ideal for precise object detection in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0425B200113HK3CZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1134067
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 8 mA without load at 24 V
- Output type: PNP open collector, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED risk group: Free group
- Cable: 300 mm length, 4-pin M8 connector
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Protection class: III
- Enclosure rating: IP67
- Material: Aluminum housing anodised, PMMA front screen, PVC cable
- Dimensions (H x L x W): 17mm x 425mm x 20mm
- Weight: 0.154 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Two beams with 200 mm separation
- LED indicators for power and object presence
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RSB1-0425B200113HK3CZZZZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
