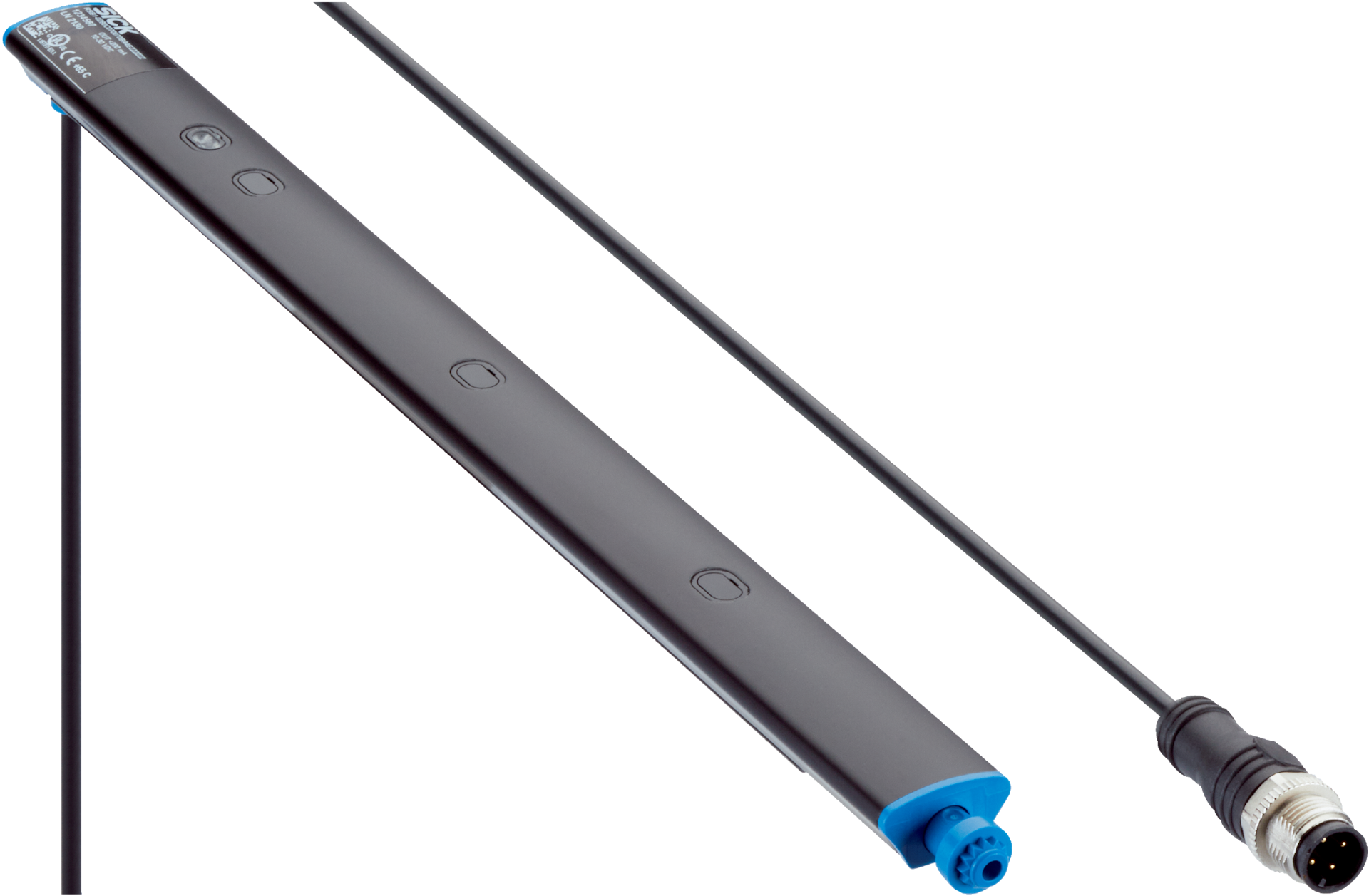

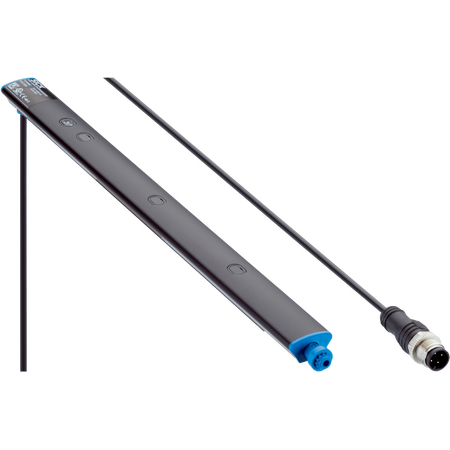

RSB1-0462D110066BA4BZZZP0B | Photoelectric sensors
The SICK RSB1-0462D110066BA4BZZZP0B is a durable photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0462D110066BA4BZZZP0B | Photoelectric sensors
Brand: SICK
SKU: 1134316
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, SICK photoelectric sensor, RSB1 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 17 mA without load at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN), light/dark switching
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Circuit protection: Reverse polarity, overcurrent, and short-circuit protected
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 17mm x 462mm x 20mm
- Weight: 0.168 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength and point-shaped light spot
- Four beams with 110 mm beam separation
- LED indicators for power and object presence
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- High shock and vibration resistance
- Cable with M12 4-pin connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and mounting.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0462D110066BA4BZZZP0B photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
