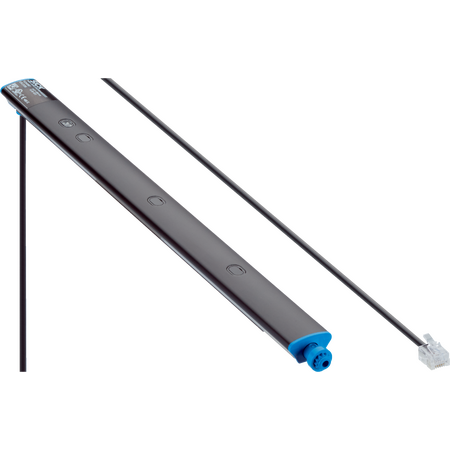

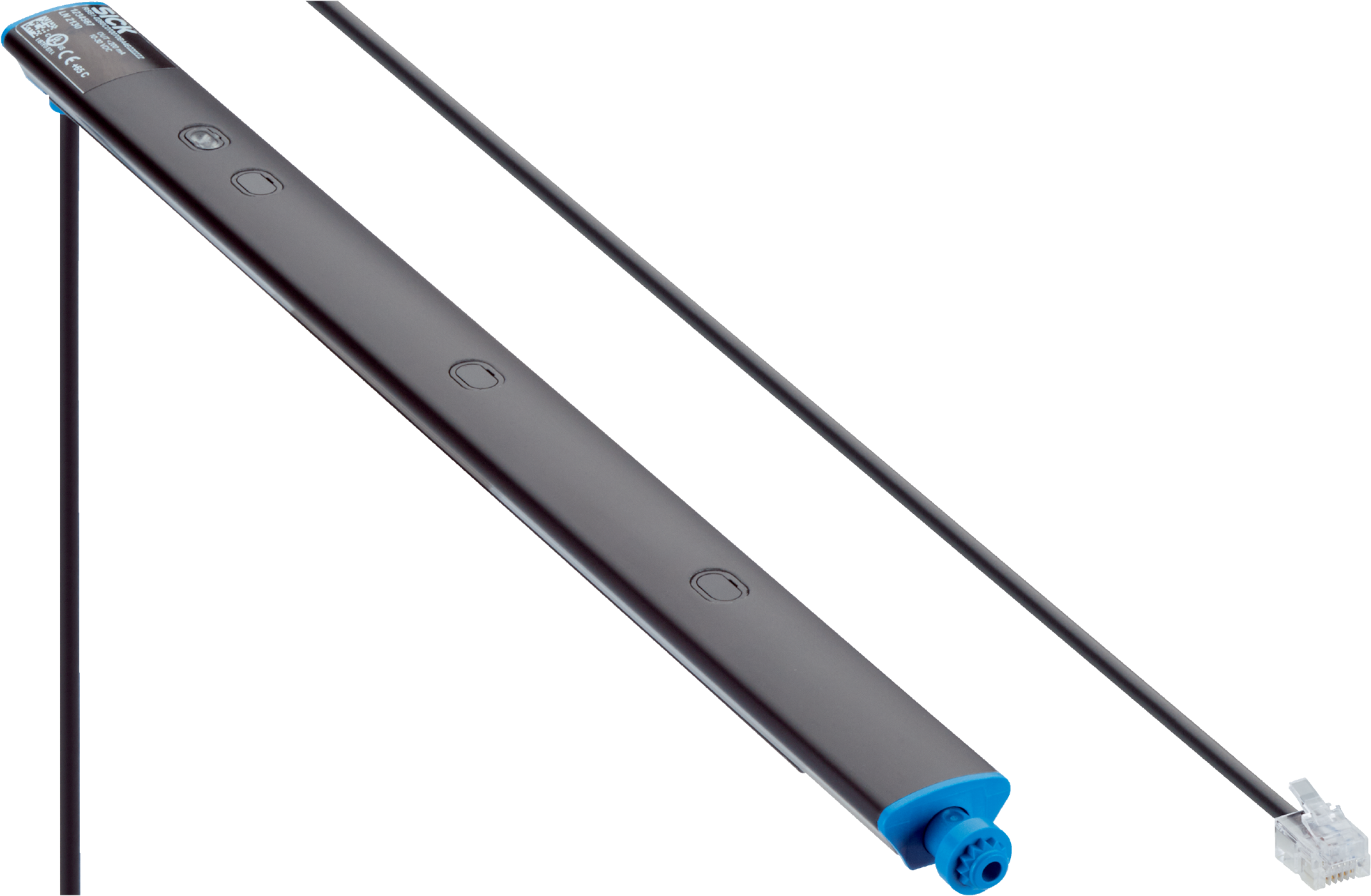

RSB1-0462E090051KHAEZZZZZZ | Photoelectric sensors
The SICK RSB1-0462E090051KHAEZZZZZZ is a robust photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and high environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0462E090051KHAEZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1130977
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK photo sensor, RSB1 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 23 mA without load at 24 V
- Digital output: 1 PNP open collector, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Material: Anodised aluminum housing, PMMA front screen, PVC cable
- Cable: 1 m length, 3.6 mm diameter, 0.13 mm² conductor size
- LED wavelength: 850 nm
- LED risk group: Free group
- Dimensions (H x L x W): 20mm x 17mm x 462mm
- Weight: 0.168 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 5 beams with 90 mm beam separation
- LED green operating indicator and LED yellow object presence indicator
- Response time ≤ 1 ms and switching frequency 500 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0462E090051KHAEZZZZZZ photoelectric sensor is available for immediate purchase. Ideal for industrial automation and object detection applications.
