RSB1-0517C130130KZ3DZZZP0C | Photoelectric sensors

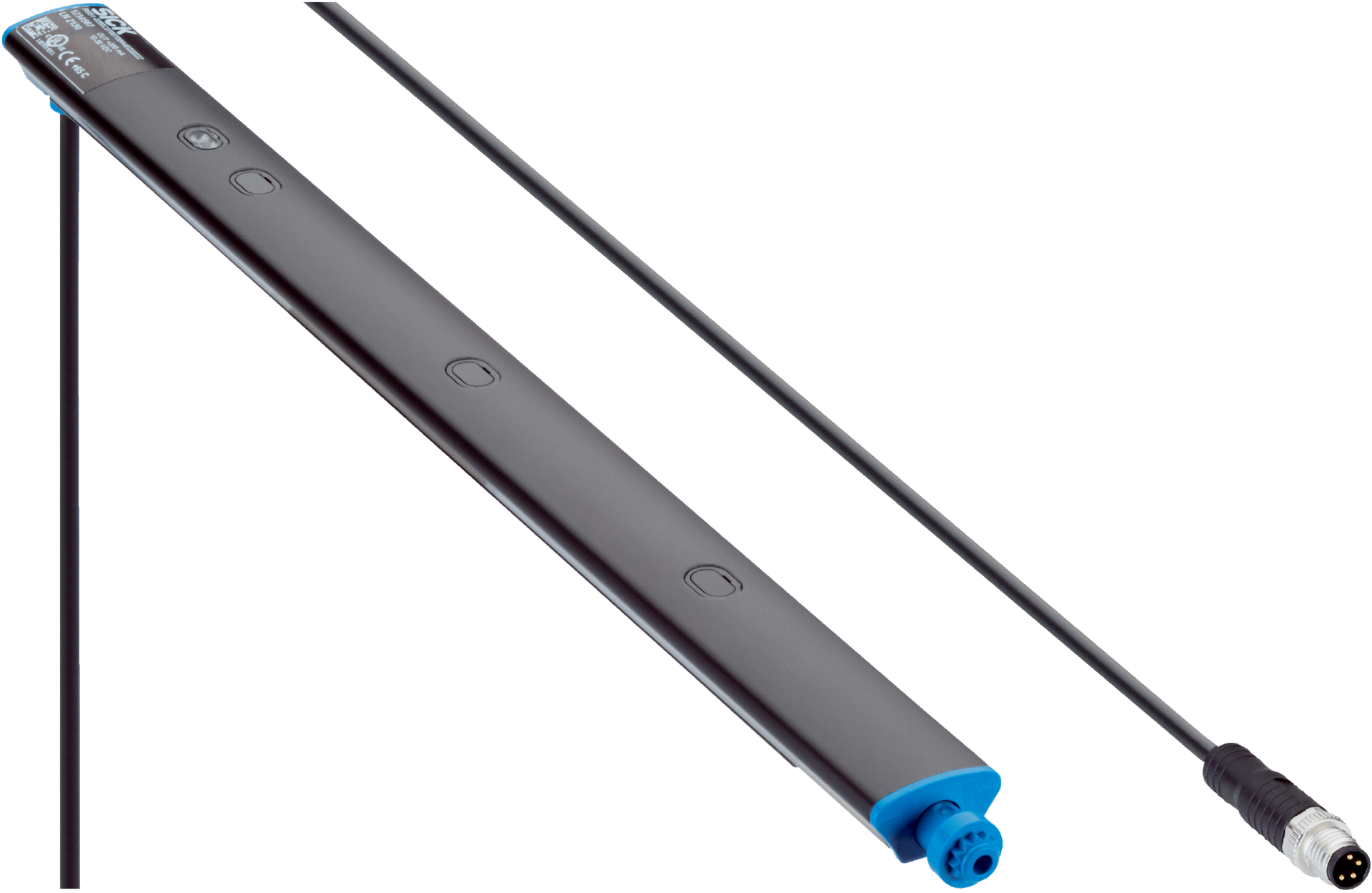

The SICK RSB1-0517C130130KZ3DZZZP0C is a durable photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

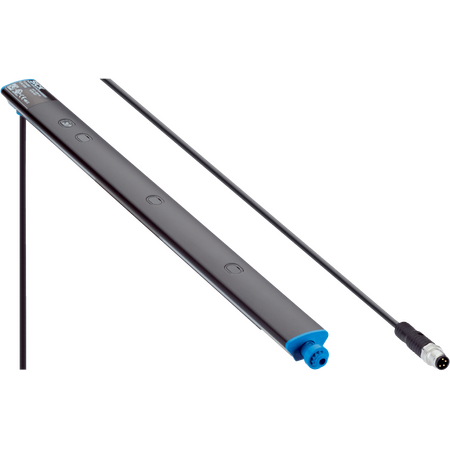

Product Name/Title: RSB1-0517C130130KZ3DZZZP0C | Photoelectric sensors
Brand: SICK
SKU: 1145357
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 15 mA without load at 24 V
- Output type: PNP open collector, dark switching
- Maximum output current: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Ripple: ≤ 5 V pp
- LED risk group: Free group
- Cable diameter: 3.6 mm
- Cable length: 500 mm
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 20mm x 17mm x 517mm
- Weight: 0.188 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Three beams with 130 mm separation
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- LED indicators for power and object detection status
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Cable with M8 4-pin connector, 500 mm length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK RSB1-0517C130130KZ3DZZZP0C photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
