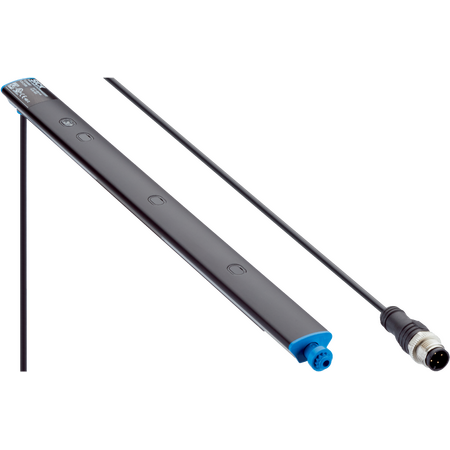

RSB1-0653G090063PZ4DS01ZZZ | Photoelectric sensors

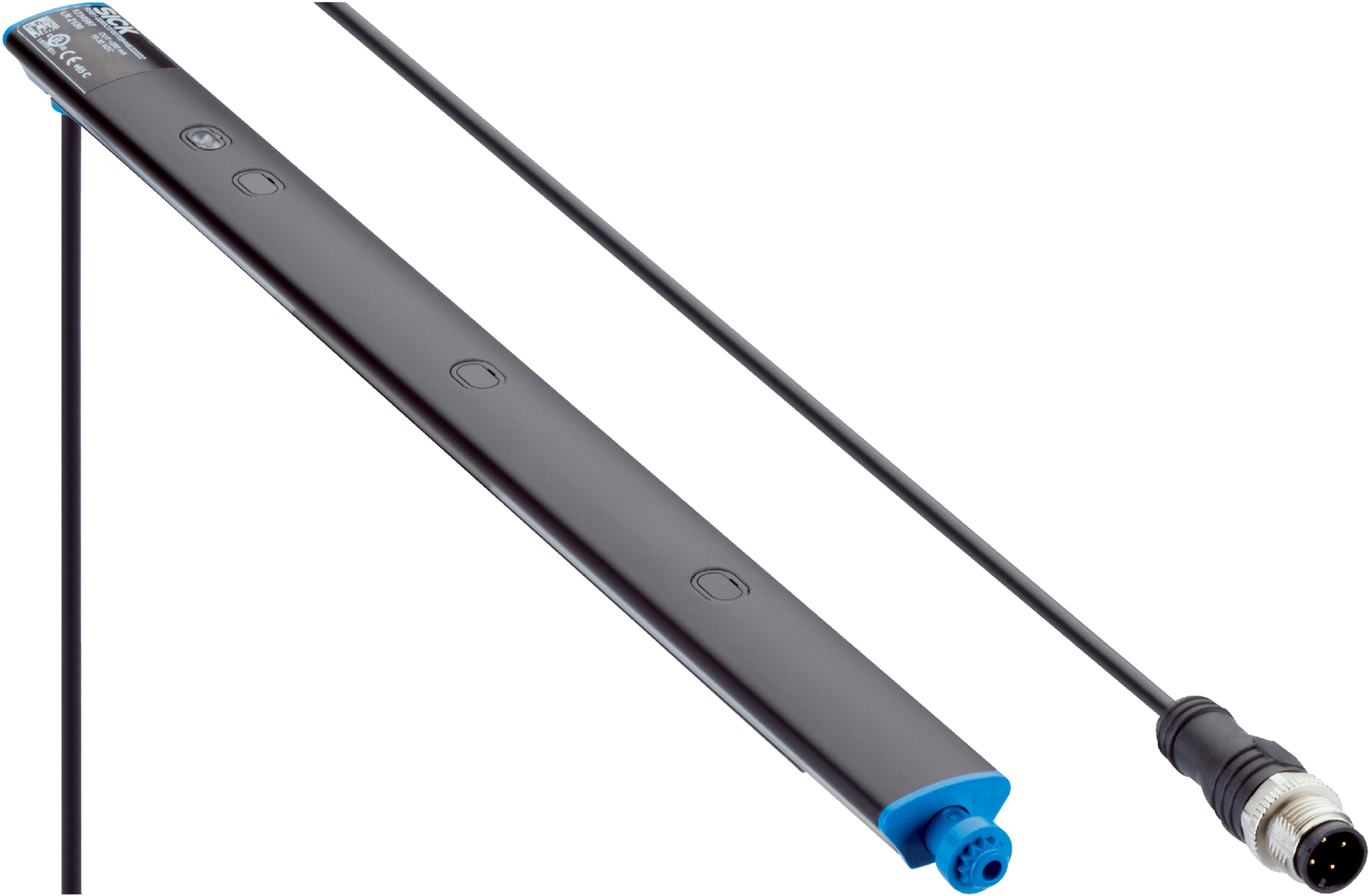

The SICK RSB1-0653G090063PZ4DS01ZZZ is a durable photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0653G090063PZ4DS01ZZZ | Photoelectric sensors
Brand: SICK
SKU: 1151673
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, SICK photo sensor, Industrial photoelectric sensor
Technical Specifications
- Functional principle: Energetic photoelectric proximity sensor
- Sensing range: 2 mm to 300 mm, recommended 2 mm to 45 mm
- Light source: Infrared LED, 850 nm wavelength
- Number of beams: 7 with 90 mm separation
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 32 mA at 24 V
- Output type: PNP digital output, max 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Anodised aluminum with PMMA front screen
- Cable: PVC, 4-pin M12 connector, 500 mm length
- Dimensions (H x L x W): 17mm x 653mm x 20.3mm
- Weight: 0.237 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength and point-shaped light spot
- 7 beams with 90 mm beam separation
- LED indicators for power and object detection status
- Type with T-slot for mounting
- High protection rating IP67 for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Robust metal aluminum anodised housing with PMMA front screen
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0653G090063PZ4DS01ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
