RSB1-0662C170161PZ1GZZZZZZ | Photoelectric sensors
The SICK RSB1-0662C170161PZ1GZZZZZZ is a high-performance photoelectric proximity sensor designed for precise object detection in industrial applications, featuring robust construction and reliable infrared LED technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

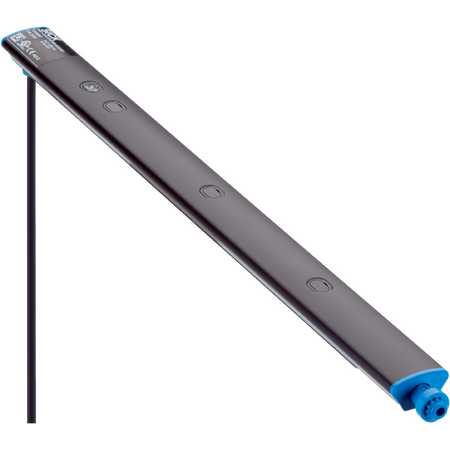

Product Name/Title: RSB1-0662C170161PZ1GZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1140702
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, SICK photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 15 mA without load at 24 V
- Output type: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable: 4-wire, 2 m length, PVC insulated
- Housing material: Anodised aluminum
- Front screen material: PMMA plastic
- Dimensions (H x L x W): 20mm x 17mm x 662mm
- Weight: 0.24 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Three beams with 170 mm beam separation
- LED indicators for power and object presence
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Short response time ≤ 1 ms and switching frequency up to 500 Hz
- Reverse polarity, overcurrent, and short-circuit protected output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0662C170161PZ1GZZZZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
