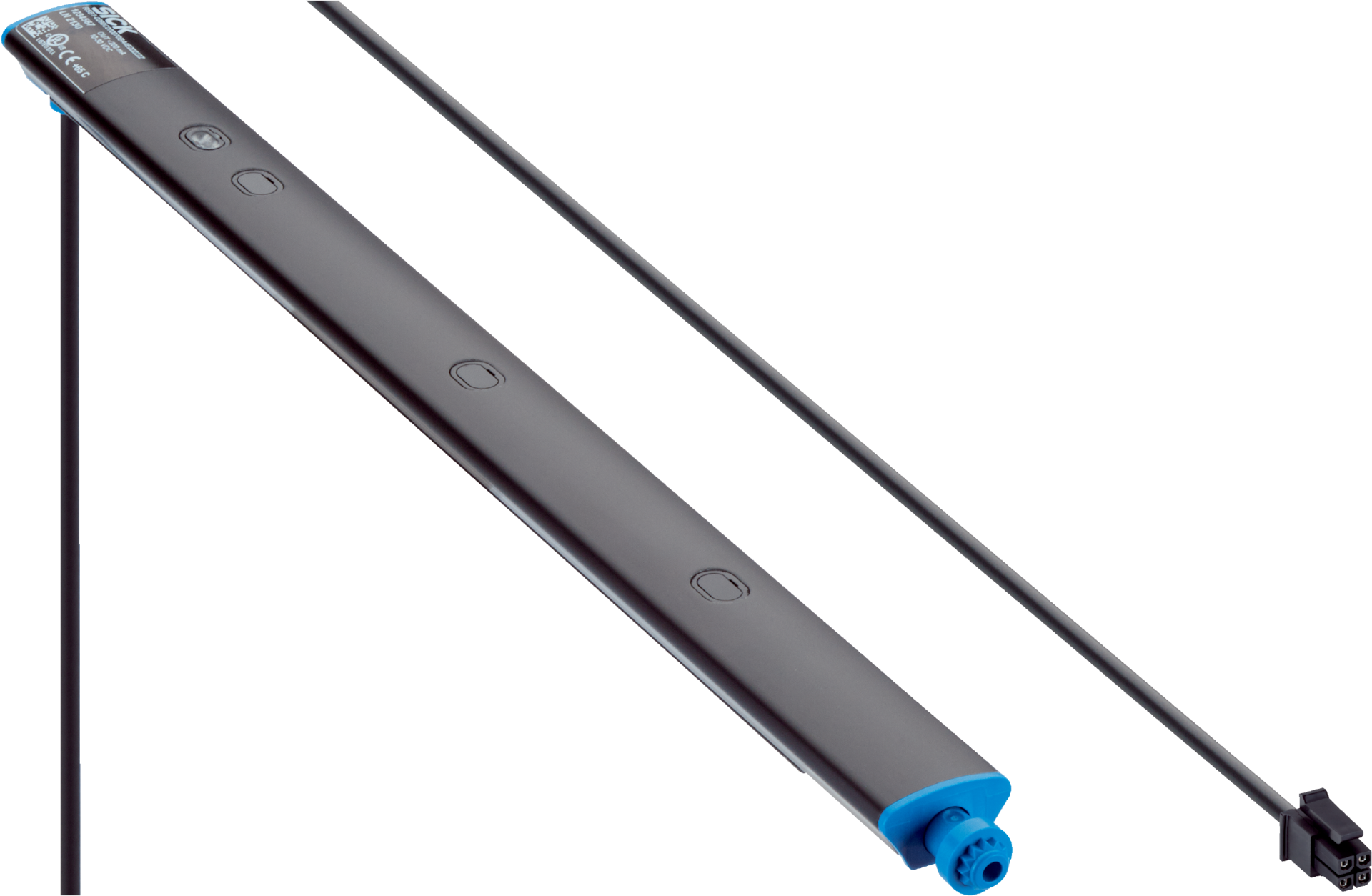

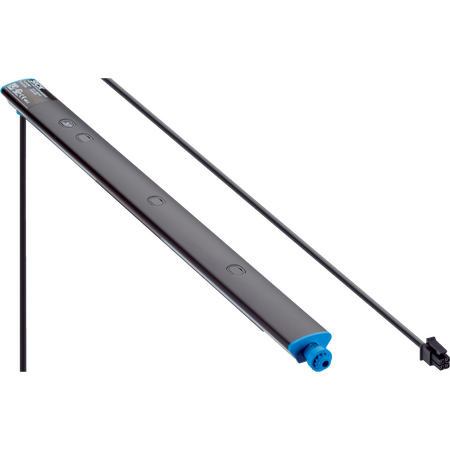

RSB1-0856F096220PZ0BS02ZZZ | Photoelectric sensors
The SICK RSB1-0856F096220PZ0BS02ZZZ is a high-performance photoelectric proximity sensor designed for precise object detection in industrial applications, featuring a robust IP67 rated aluminum housing and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0856F096220PZ0BS02ZZZ | Photoelectric sensors
Brand: SICK
SKU: 1136775
Alternatively Known As: Photoelectric proximity sensor, Infrared photoelectric sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA without load at 24 V
- Light source: Infrared LED, 850 nm wavelength
- Number of beams: 6 with 96 mm separation
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Anodised aluminum with PMMA front screen
- Dimensions (H x L x W): 17mm x 856mm x 20mm
- Weight: 0.311 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Six beams with 96 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Response time ≤ 1 ms and switching frequency up to 500 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper connection and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0856F096220PZ0BS02ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
