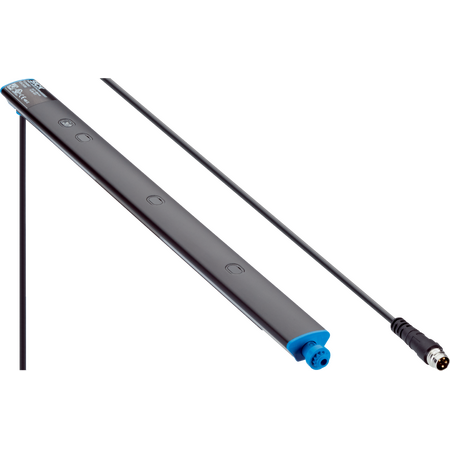

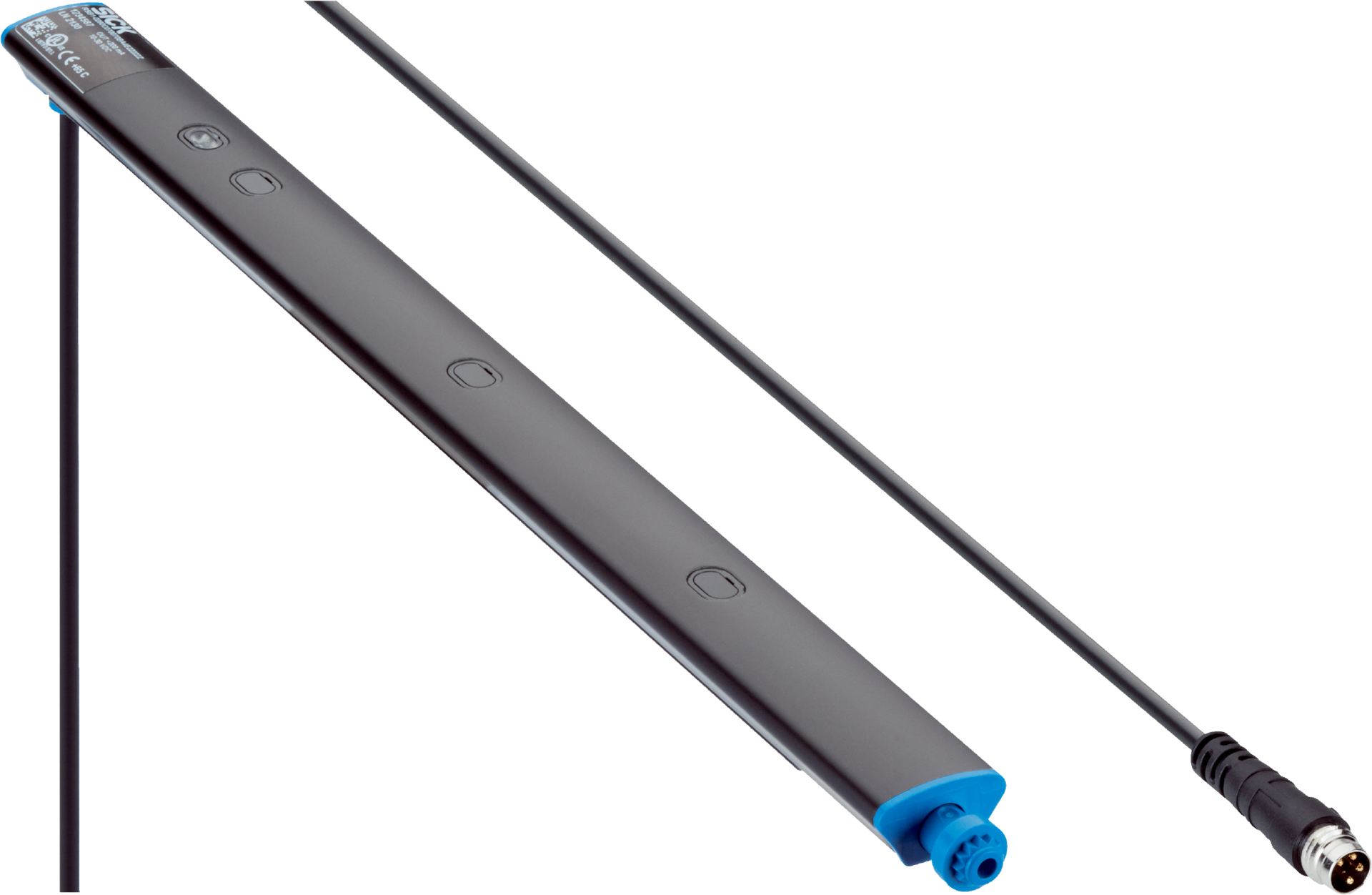

RSB1-0914H102100FZ5EZZZP0B | Photoelectric sensors
The SICK RSB1-0914H102100FZ5EZZZP0B is a durable photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0914H102100FZ5EZZZP0B | Photoelectric sensors
Brand: SICK
SKU: 1129105
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 38 mA at 24 V DC without load
- Switching mode: Dark switching with PNP output
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable diameter: 3.6 mm, length 1 m
- Housing material: Anodised aluminum
- Front screen material: PMMA
- Connector: M8, 4-pin male
- Dimensions (H x L x W): 20mm x 17mm x 914mm
- Weight: 0.332 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength and point-shaped light spot
- 8 beams with 102 mm beam separation
- LED indicators for power and object presence
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Cable with male M8 4-pin connector, 1 m length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor alignment.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0914H102100FZ5EZZZP0B photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
