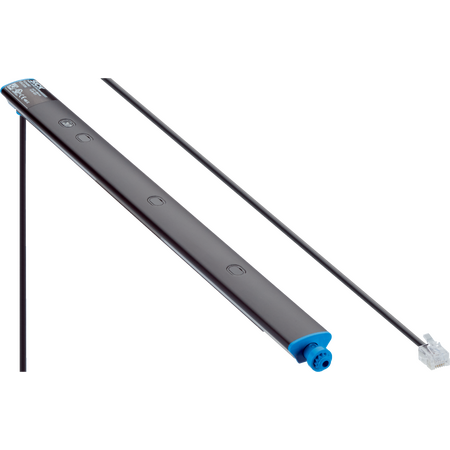

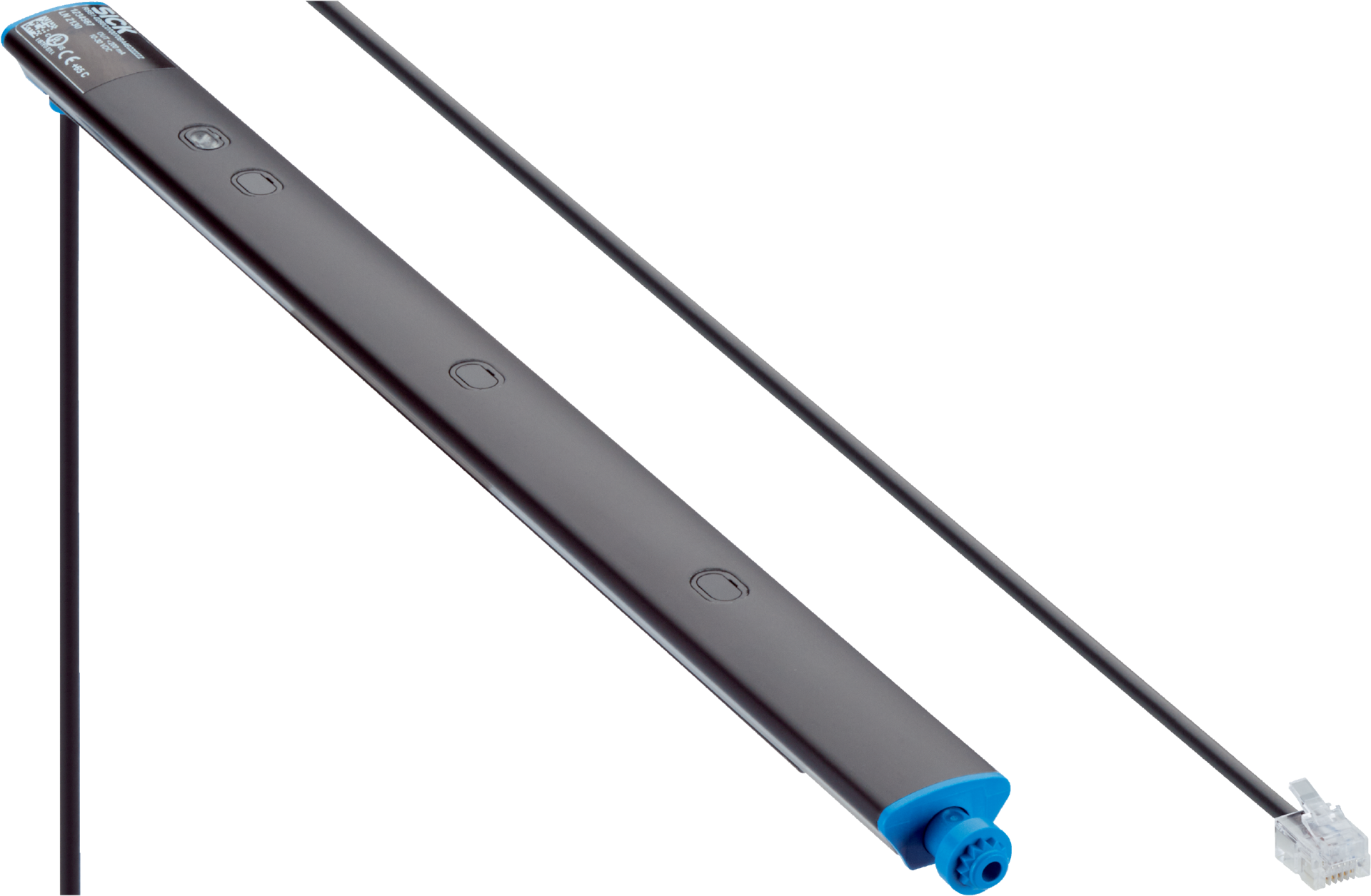

RSB1-0920G128076KHAEZZZZZZ | Photoelectric sensors
The SICK RSB1-0920G128076KHAEZZZZZZ is a high-performance photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0920G128076KHAEZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1130983
Alternatively Known As: Photoelectric proximity sensor, Infrared photoelectric sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 32 mA without load at 24 V
- Digital output: 1 PNP open collector, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable diameter: 3.6 mm, length 1 m
- Housing material: Metal aluminum anodised
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 17mm x 920mm x 20mm
- Weight: 0.334 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength and free LED risk group
- 7 beams with 128 mm beam separation
- LED green operating indicator and LED yellow status indicator for received light beam
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 55 Hz
- Cable with RJ12 6-pin connector, 1 m length
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0920G128076KHAEZZZZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
