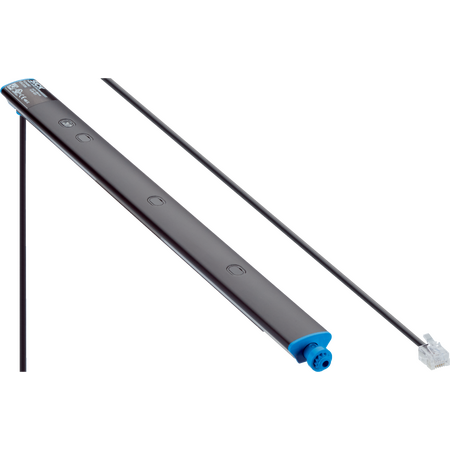

RSB1-1200G150150PPAGS01P0E | Photoelectric sensors
The SICK RSB1-1200G150150PPAGS01P0E is a robust photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and high environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-1200G150150PPAGS01P0E | Photoelectric sensors
Brand: SICK
SKU: 1133503
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK photo sensor, RSB1 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 32 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Circuit protection: Reverse polarity, overcurrent, and short-circuit protected
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 20mm x 17mm x 1200mm
- Weight: 0.44 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 7 beams with 150 mm beam separation
- LED indicators for power and object detection status
- Type with T-slot for mounting
- High protection rating IP67
- Operating temperature range from -40 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance 10 Hz to 55 Hz
- Cable with 6-pin RJ12 connector, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-1200G150150PPAGS01P0E photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
