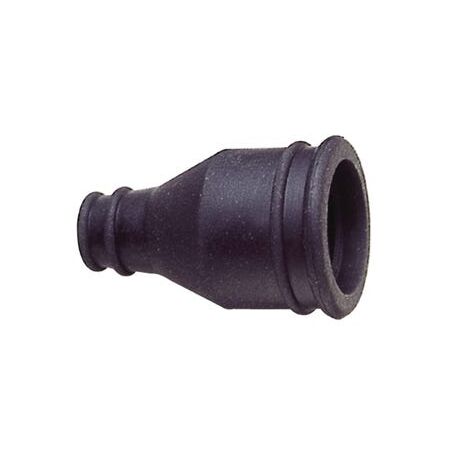

Rubber End Sleeve M16 Polychloroprene IP54 Black Pack of 10 Cabac

BRAND: CABAC
SKU: GZ11
$6.20 List price: $8.30
1 EA ($6.20 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Designed for conduit sealing and cable protection applications, this Rubber End Sleeve M16 provides neat conduit termination with ingress protection for electrical installations. The sleeve is manufactured from black polychloroprene rubber with UV resistance and an operating temperature range from -30°C to +120°C. It delivers IP54 protection when installed correctly and is suitable for PA, PI, CP, PR, PADL and PF conduit series. Installation requirements, dimensions, and compatibility information are provided further down the page.
Technical Specifications
  • Material: Black polychloroprene rubber
  • Suitable for: PA, PI, CP, PR, PADL & PF conduit series
  • Temperature range: -30ºC to +120ºC
  • Ingress Protection: IP54
  • Mechanical protection: Low
  • Dimensions (H x L x W): 20mm x 40mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Made from black polychloroprene rubber
  • Tapered sealing system for neat conduit termination
  • UV-resistant
  • Temperature range from -30ºC to +120ºC
  • Provides low mechanical protection
  • IP54 rating when used appropriately
Professional Installation Requirements
  • Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and protection.
Applications
  • Cable management for electrical conduits
  • Suitable for PA, PI, CP, PR, PADL & PF conduit series
  • Used in light, standard, and heavyweight conduit variants
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable material reduces the need for frequent replacements
  • UV resistance extends product life, reducing waste
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Cabac Rubber End Sleeve M16 is available now for immediate purchase. Ideal for cable and wire management applications requiring neat conduit termination and ingress protection.

FAQ

Q: Which conduit series is this Rubber End Sleeve M16 compatible with?
A: It is suitable for PA, PI, CP, PR, PADL and PF conduit series installations.

Q: What level of ingress protection does this end sleeve provide?
A: It provides IP54 ingress protection when installed correctly and used appropriately.


Pair with a Rubber End Sleeve M20 where larger cable entries require matching sealing accessories.
Install alongside a Rubber Conduit End Sleeve 30mm for conduit systems requiring both cable sealing and conduit termination protection.
Use with a Screwed Bush Female 20mm to improve cable protection at enclosure entry points and panel terminations.

The conduit fittings Australia guide explains common sealing and termination accessories used in conduit installations.

Add to your order today and ship Australia-wide with SCHNAP's reliable delivery network.
