Rubber Splice Tape 25mm x 9m | 69kV Voltage Rating | Self-Amalgamating EPR | Moisture & UV Resistant by Cabac
POWERJOINT RT34 Rubber Splice LND 25x9m is a high voltage self-amalgamating EPR tape designed for electrical insulation and jacketing of solid dielectric cables up to 69kV, providing moisture proofing and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

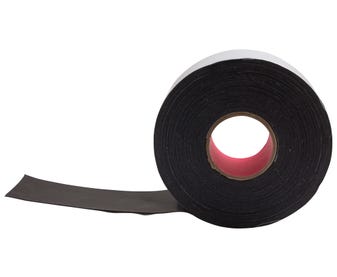

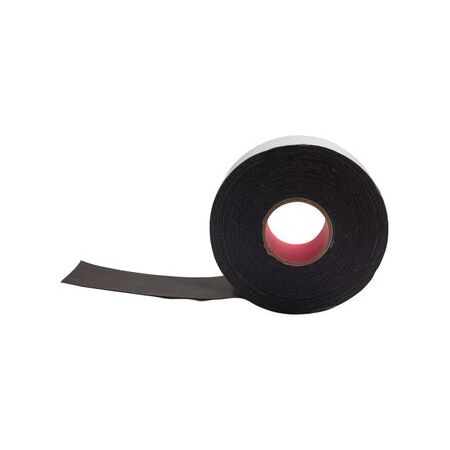

Product Name/Title: POWERJOINT RT34 Rubber Splice LND 25x9m
Brand: Cabac
SKU: T030006RTL25
Alternatively Known As: EPR Insulation Tape, Rubber Splice Tape, Self-Amalgamating Electrical Tape, High Voltage Splice Tape
Technical Specifications
- Material: Ethylene Propylene Rubber (EPR)
- Thickness: 0.76mm (30 mil)
- Voltage Rating: Up to 69kV for splices, 35kV for terminations
- Temperature Rating: 90°C continuous, 130°C emergency overload
- Tape Length: 9 meters
- Tape Width: 25mm
- Features: Self-amalgamating, lined with easy-to-remove separator
- Properties: Electrically stable, moisture proof, corrosion and UV resistant
- Dimensions (H x L x W): 90mm x 9000mm x 250mm
- Weight: 0.1 kg
Key Features
- Self-amalgamating ethylene propylene rubber (EPR) tape
- 0.76mm (30 mil) thickness for rapid, void-free insulation build-up
- Quick amalgamation for electrical stability and moisture proofing
- Easy to remove liner
- Resistant to corrosion, chemicals, and ultraviolet light
- Suitable for conductors rated at 90°C with emergency overload rating of 130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper insulation and compliance with electrical safety standards.
Applications
- Electrical insulation and jacketing in splices of solid dielectric cable up to 69kV
- Building stress cones in terminations of solid dielectric cable up to 35kV
- Jacketing of indoor terminations
- Bus bar insulation and corrosion protection
- Jacket repair and restoration in all types of cable
- Moisture sealing applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces need for frequent replacements
- Resistant to UV and chemical degradation, minimizing environmental waste
Warranty Information
Warranty information not specified; typically covered by manufacturer against defects.
Available Now
The POWERJOINT RT34 Rubber Splice LND 25x9m is available for immediate purchase, ideal for electrical insulation and jacketing applications in high voltage cable splices and terminations.
