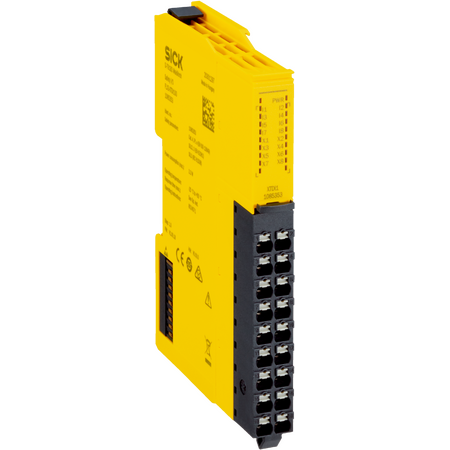

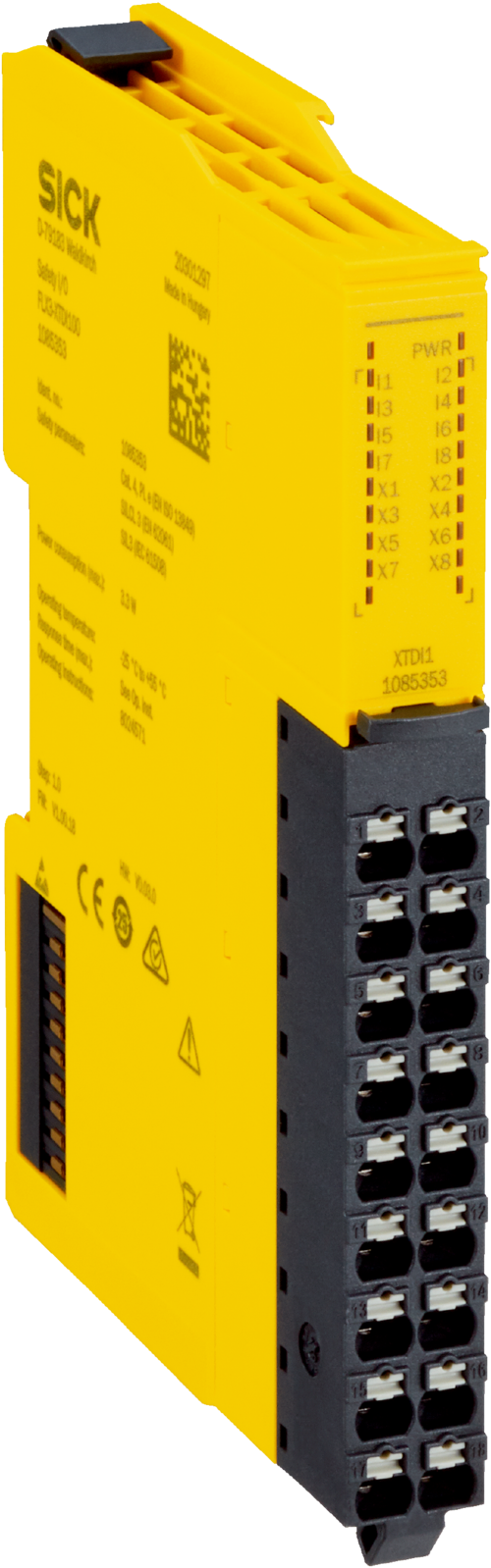

Safe Digital I O Expansion Module FLX3-XTDI100 SIL 3 & Category 4 8 Safety Inputs & Outputs SICK
The Safe Digital I O Expansion Module FLX3-XTDI100 is designed for industrial automation safety systems, featuring SIL 3 safety integrity and Category 4 compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 4 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Connection type: Front connector with 18 spring terminals
- Protection class: III (EN 61140)
- Interference resistance: EN 61000-6-2
- Interference emission: EN 61000-6-4
- Power consumption: 2.4 W DC (without outputs)
- Power loss: ≤ 3.3 W
- Contamination rating: 2 (IEC 61010-1)
- Control device type: Open device (IEC 61010-2-201)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Vibration resistance: 1 g, 5 Hz to 200 Hz (EN 60068-2-6)
- Shock resistance: 15 g, 11 ms (EN 60068-2-27)
- Dimensions (H x L x W): 125mm x 86mm x 14mm
- Weight: 0.104 kg
Key Features
- Safe digital input/output expansion module with 8 safety inputs and 8 test outputs
- Configuration via software (Safety Designer)
- Monitoring and testing of connected safety devices and wiring with short-circuit detection
- Safe series connection with Flexi Loop
- LED display elements for status indication
- Mounting on standard 35 mm × 7.5 mm mounting rail
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and compliant with relevant safety standards.
Applications
- Industrial automation safety systems
- Machine safety monitoring and control
- Expansion of safety input/output capabilities in control panels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 2.4 W reduces energy usage
- Designed for long operational life with a mission time of 20 years, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FLX3-XTDI100 Safe Digital I/O Expansion Module is available for immediate purchase, ideal for enhancing safety in industrial automation and control systems.
