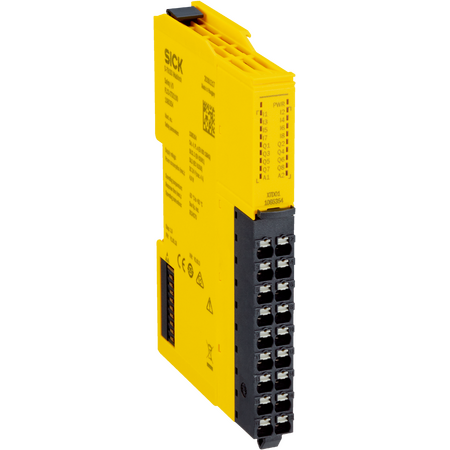

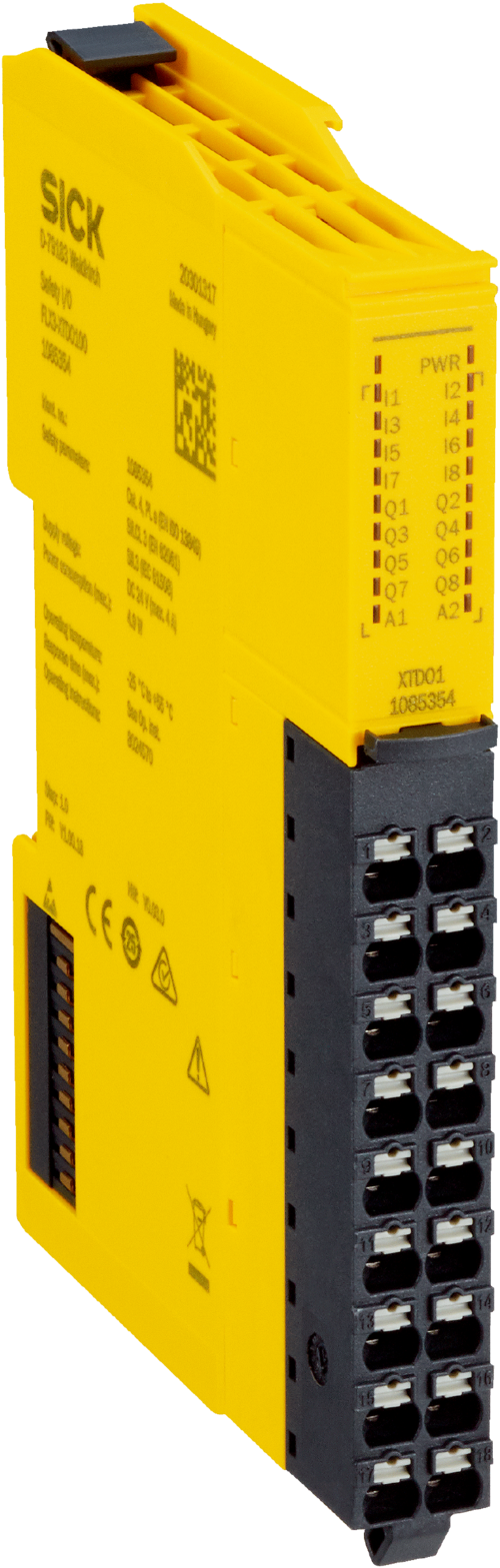

Safe Digital I O Module FLX3-XTDO100 8 Safety Inputs & Outputs SIL 3 Certified SICK

BRAND: SICK
SKU: 1085354
$1,178.20 List price: $1,480.80
+ −
30 Days Return Electricians Unlock Trade Access
The Safe Digital I O Module FLX3-XTDO100 is designed for industrial automation safety systems, featuring 8 safety inputs and 8 safety outputs.
Technical Specifications
  • Safety inputs: 8
  • Safety outputs: 8
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (ISO 13849-1)
  • Performance level: PL e (ISO 13849-1)
  • Mean probability of dangerous failure per hour (PFHD): 4 × 10^-9
  • Mission time: 20 years (ISO 13849-1)
  • Connection type: Front connector with 18 spring terminals
  • Protection class: III (EN 61140)
  • Interference resistance: EN 61000-6-2
  • Interference emission: EN 61000-6-4
  • Supply voltage: 24 V DC (16.8 V to 30 V)
  • Power consumption: 2.4 W nominal, power loss ≤ 4.9 W
  • Contamination rating: 2 (IEC 61010-1)
  • Enclosure rating: IP20 (EN 60529)
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -25 °C to +70 °C
  • Vibration resistance: 1 g, 5 Hz to 200 Hz
  • Shock resistance: 15 g, 11 ms
  • Mounting: 35 mm × 7.5 mm mounting rail (IEC 60715)
  • Dimensions (H x L x W): 124.7mm x 85.5mm x 14mm
  • Weight: 0.111 kg
Key Features
  • Safe digital input/output expansion module with 8 safety inputs and 8 safety outputs
  • Configuration via Safety Designer software
  • Fast shut-off capability for connected safety devices
  • LED display elements for status indication
  • Mounting on standard 35 mm × 7.5 mm mounting rail
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
  • Industrial automation safety systems
  • Machine safety monitoring and control
  • Factory automation requiring SIL 3 and PL e safety levels
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
  • Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
  • Enhances machine safety reducing risk of accidents and associated environmental hazards
  • Low power consumption of 2.4 W nominal reduces energy usage
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK FLX3-XTDO100 Safe Digital I/O Expansion Module is available for immediate purchase, ideal for industrial safety and automation applications.
