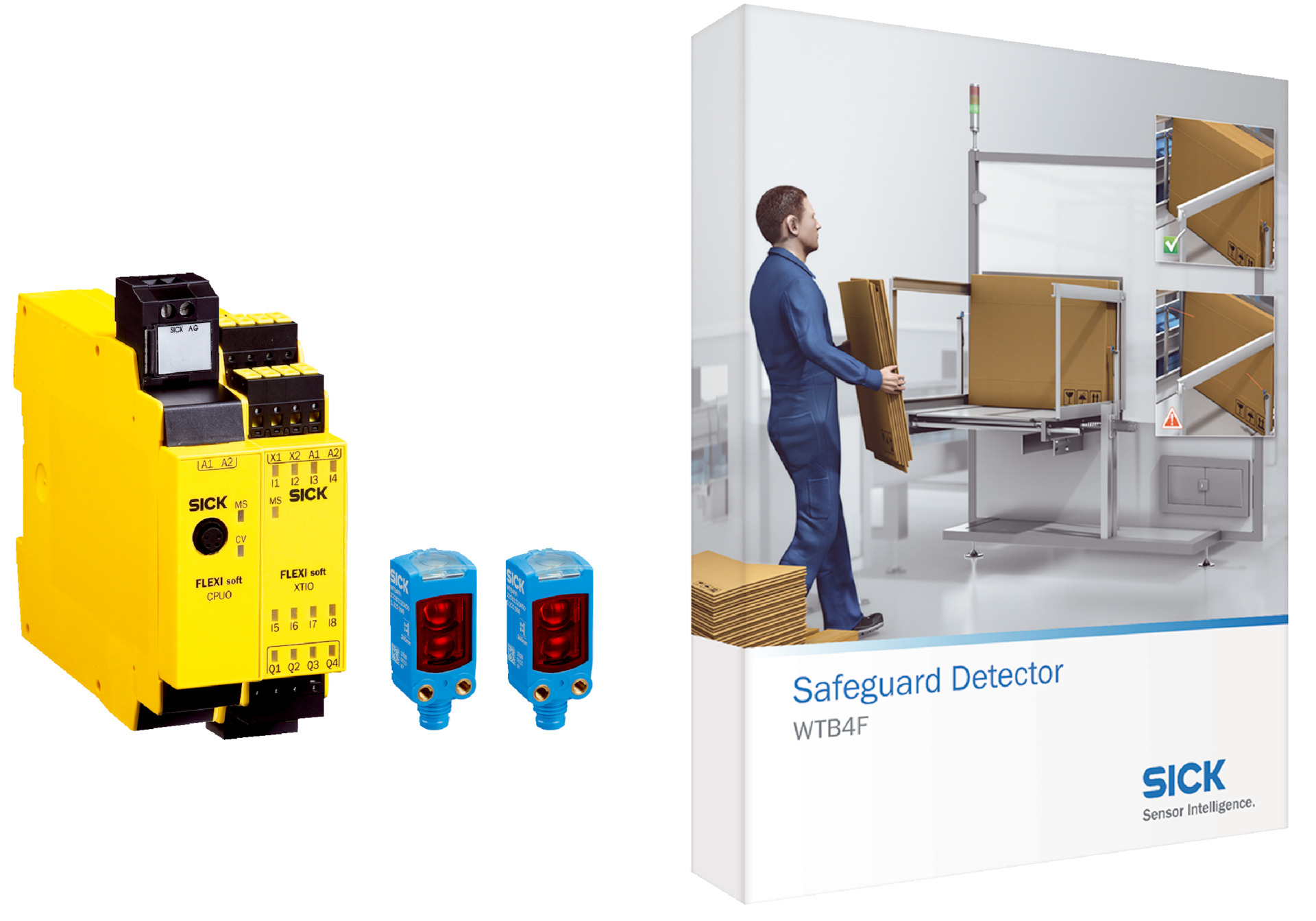

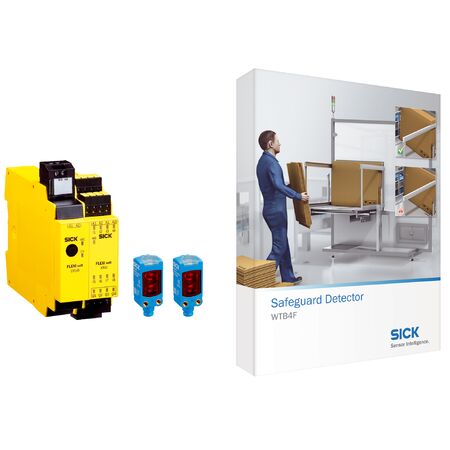

Safeguard Detector Software License | Flexi Soft Safety Control | Category 3 Safety | by SICK
The Safeguard Detector Software License is designed for the Flexi Soft safety control device, providing safe logic and ready-made functions for movable guard detection. Ideal for industrial safety systems, it supports a detection zone from 30 mm to 100 mm and offers a single license for perpetual usage. This software enhances machine safety, reducing the risk of accidents in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Software for Safeguard Detector safety system based on Flexi Soft safety control device
- Includes safe logic and ready-made safety functions for movable guard detection
- Single license assigned to one device or workstation with perpetual usage rights
- Supports detection zone from 30 mm to 100 mm
- Category 3 safety (EN ISO 13849-1) with Performance Level PL d
- Modular Flexi Soft station design customizable with main module, system plug, and I/O modules
- Supports approx. 12 connectable sensor pairs depending on logic modules
- Pulse rate of sensors: 10 Hz with max safety controller cycle time ≤ 28 ms
- Supply voltage: 24 V DC (16.8 V to 30 V)
- Protection class III (EN 50178) and enclosure rating IP20 (EN 60529)
- Fieldbus integration via gateway supporting CANopen, EtherCAT, EtherNet/IP, Modbus TCP, PROFIBUS DP, PROFINET, DeviceNet
- MultiPulse photoelectric proximity sensors with visible red light (650 nm), IP67 rated, operating temperature -40 °C to +60 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system engineers or certified electricians familiar with Flexi Soft safety controllers.
Applications
- Industrial safety systems for machinery guarding
- Automation safety control using Flexi Soft safety controller
- Hazardous point access prevention in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Modular and software-based system reduces need for physical hardware replacements
- Energy efficient operation with low voltage DC supply
Warranty Information
Standard manufacturer warranty applies; software license usage rights are perpetual.
Available Now
The SICK SYS/SGD-W4104020101FX3 Safeguard Detector Software License is available now for immediate purchase. Ideal for industrial safety and automation applications requiring reliable movable guard detection.
