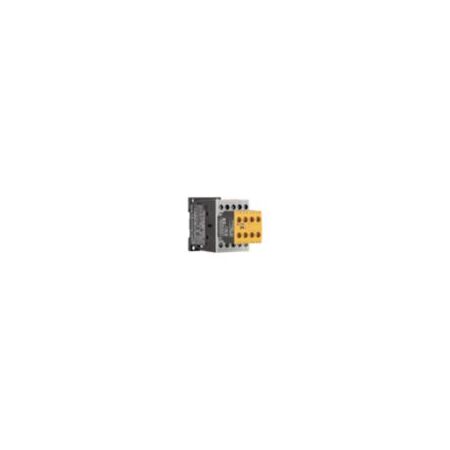

Safety Contactor 24V DC | 5.5 kW Power | 2 N/O & 3 N/C Contacts | IP20 by Eaton
Safety contactor with 24V DC coil voltage and rated operational power up to 5.5 kW—ideal for motor control applications. Built for industrial and commercial use, featuring 2 normally open and 3 normally closed contacts for versatile operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Contactor 24V DC | 5.5 kW Power | 2 N/O & 3 N/C Contacts | IP20 by Eaton
Brand: Eaton
SKU: Y7-191762
Alternatively Known As: Safety Contactor 24V DC, Motor Contactor DILMS9-23, Eaton DILMS Safety Relay, DC Coil Contactor
Technical Specifications
- Rated operational power at AC-3: 3 kW at 240 V, 4 kW at 380/400 V, 5.5 kW at 415 V
- Rated operational current at AC-3: 9 A at 220-440 V, 7 A at 500 V, 5 A at 660/690 V
- Rated operational current at AC-1: 22 A at 380-415 V
- Rated operational current at DC-1: 20 A at 110 V, 15 A at 220 V, 20 A at 60 V
- Rated breaking capacity: 90 A at 220/230 V and 380/400 V, 70 A at 500 V, 50 A at 660/690 V
- Rated making capacity up to 690 V: 126 A
- Number of contacts: 2 normally open, 3 normally closed
- Operating temperature range: -25 °C to 60 °C (ambient), -25 °C to 40 °C (enclosed)
- Degree of protection: IP20
- Mechanical lifespan: 10,000,000 operations (DC operated)
- Power consumption: 4.5 W at pick-up and sealing
- Terminal capacity: flexible 0.75-2.5 mm², solid 0.75-4 mm²
- Tightening torque: 1.2 Nm
- Dimensions (H x L x W): 69mm x 117mm x 45mm
- Weight: 0.354 kg
Key Features
- Rated operational power up to 5.5 kW at AC-3, 415 V, 50 Hz
- 2 Normally Open (N/O) and 3 Normally Closed (N/C) contacts
- 24 V DC coil voltage with DC operation
- Screw terminals with M3.5 screws and standard/Pozidriv screwdriver compatibility
- Mirror contact and varistor suppressor circuit fitted
- IP20 degree of protection
- Mechanical lifespan of 10,000,000 operations (DC operated)
- Rated breaking capacity up to 90 A at 220/230 V and 380/400 V
- Shock resistance tested according to IEC/EN 60068-2-27
- Overvoltage category III and pollution degree 3
- Rated insulation voltage of 690 V and rated operational voltage max 690 V
- Power consumption 4.5 W at pick-up and sealing (DC)
- Duty factor 100%
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper integration into motor control systems.
Applications
- Contactors for motors including motors with efficiency class IE3
- Suitable for normal AC induction motors starting, plugging, reversing, inching
- Non-inductive or slightly inductive loads, resistance furnaces
- Elevator control, refrigeration control, resistance air heating, tungsten incandescent lamps
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency motor control reduces energy consumption
- Durable design extends product life reducing waste
- Complies with standards ensuring safe and efficient operation
Warranty Information
Warranty terms as per Eaton's standard product warranty policy.
Available Now
The Eaton Moeller® series DILMS Safety Contactor 24V DC is available now for immediate purchase. Ideal for motor control applications in industrial and commercial settings.
