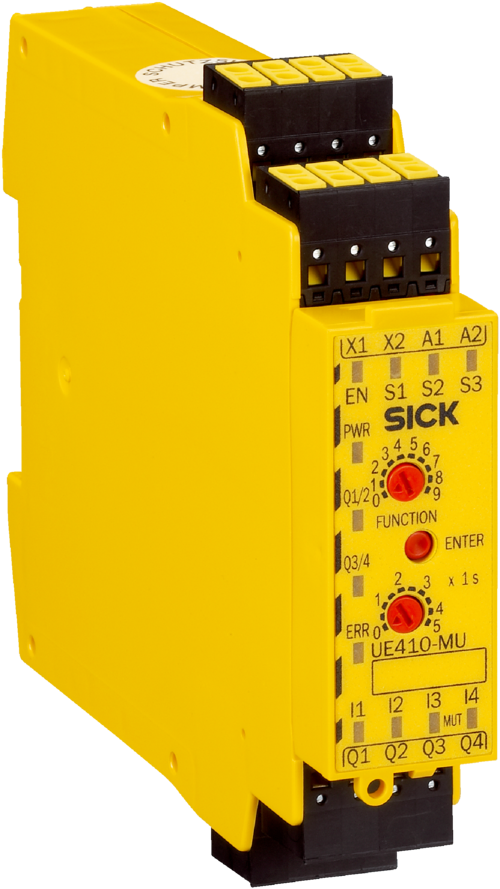

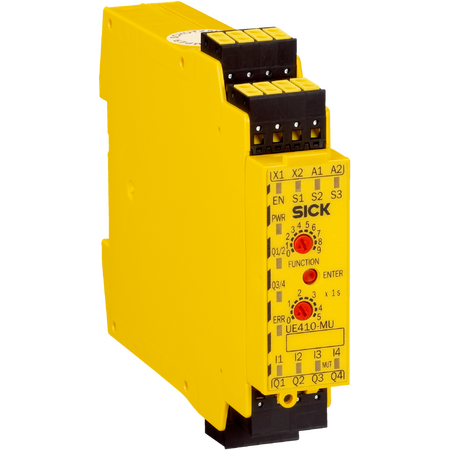

Safety Controller Module UE410-MU3T5 SIL 3 & Category 4 4 Safety Inputs & Outputs SICK

BRAND: SICK
SKU: 6026136
$981.80 List price: $1,234.00
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Controller Module UE410-MU3T5 is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance.

Alternatively Known As: Safety Controller Module UE410-MU3T5, SICK Safety Controller, Industrial Safety Module

Technical Specifications
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • Mean probability of dangerous failure per hour (PFHD): 2.5 x 10^-9
  • Mission time: 20 years
  • Restart interlock: Manual/automatic configurable
  • Inputs: 4 safety inputs, 4 switching inputs
  • Outputs: 4 safety outputs, 2 test outputs
  • Delay time on outputs Q3/Q4: 0 s to 5 s
  • Connection type: Plug-in screw-type terminals
  • Protection class: III (EN 61140)
  • Type of voltage supply: PELV or SELV
  • Supply voltage: 24 V DC (19.2 V DC to 30 V DC)
  • Residual ripple: ≤ 10%
  • Power consumption: ≤ 3 W (DC)
  • Switch-on time: ≤ 60 s
  • Enclosure rating: IP40 housing, IP20 terminals
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -25 °C to +70 °C
  • Air humidity: ≤ 95%, non-condensing
  • EMC: Class A (EN 61000-6-2, EN 55011)
  • Vibration resistance: 5 g RMS, 5 Hz to 500 Hz
  • Dimensions (H x L x W): 96.5mm x 120.8mm x 22.5mm
  • Weight: 0.18 kg
Key Features
  • Main module with configuration via rotary switch
  • Supports manual and automatic restart interlock
  • External device monitoring (EDM) enabled
  • AND, OR operation and bypass functions
  • Differentiation between man and material (muting)
  • 4 safety inputs and 4 switching inputs
  • 4 safety outputs and 2 test outputs
  • Plug-in screw-type terminal connections
  • LED display elements for status indication
  • Protection class III with PELV or SELV voltage supply
  • Supply voltage 24 V DC (19.2 V DC to 30 V DC)
  • Power consumption ≤ 3 W
  • Switch-on time ≤ 60 seconds
  • Enclosure rating IP40 housing, IP20 terminals
  • Operating temperature range -25 °C to +55 °C
  • Storage temperature range -25 °C to +70 °C
  • Electromagnetic compatibility Class A
  • Vibration resistance 5 g RMS, 5 Hz to 500 Hz
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with industrial safety systems and electrical standards to ensure compliance and safety.
Applications
  • Industrial safety control systems
  • Machine safety monitoring
  • Automation safety applications
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption of ≤ 3 W reduces energy usage
  • Durable design extends product lifecycle, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK UE410-MU3T5 Safety Controller Module is available for immediate purchase, ideal for industrial safety and automation applications.
