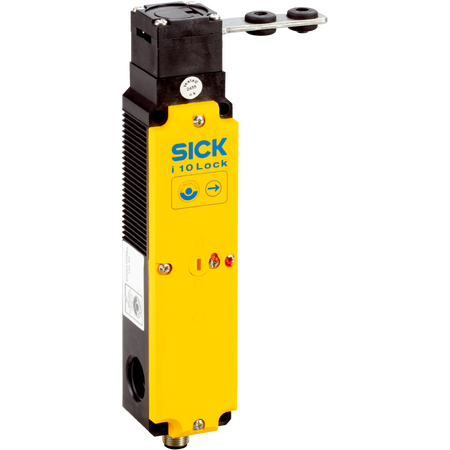

Safety Interlock Switch 1A IP67 Grey SICK

BRAND: SICK
SKU: 6053788
$886.60 List price: $1,114.40
+ −
30 Days Return Electricians Unlock Trade Access
SICK safety interlock switch featuring 1A, IP67 and grey finish. Ideal for machine guarding and safe isolation of hazardous plant.
Technical Specifications
  • Sensor principle: Electro-mechanical
  • Locking force Fmax: 1,300 N (EN ISO 14119)
  • Locking force FZh: 1,000 N (EN ISO 14119)
  • Actuation force: ≥ 10 N
  • Retaining force: ≤ 20 N
  • Actuation frequency: ≤ 1,200 per hour
  • Actuation directions: 4
  • Approach speed: ≤ 20 m/min
  • B10d parameter: 3 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level
  • Safe state in fault: No internal fault detection; fault detection by connected safety logic
  • Connection type: Plug connector, M12, 8-pin with brass coupling nut
  • Contamination rating: 3
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 1 A at 24 V AC/DC
  • Rated insulation voltage Ui: 30 V
  • Rated impulse withstand voltage Uimp: 1,500 V AC
  • Type of output: Electro-mechanical contacts
  • Power consumption: ≤ 8 W
  • Short-circuit protection: 1 A gG
  • Switching voltage: ≥ 12 V DC
  • Switching current: 1 mA at 24 V DC
  • Solenoid operating voltage: 20.4 V DC to 26.4 V DC
  • Switch-on time of magnet: 100%
  • Housing material: Glass-fiber reinforced thermoplastic
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP67 (IEC 60529)
  • Operating temperature: -20 °C to +55 °C
  • Storage temperature: -20 °C to +55 °C
  • Dimensions (H x L x W): 100mm x 80mm x 50mm
  • Weight: 0.5 kg
Key Features
  • Electro-mechanical sensor principle with power to lock mechanism
  • Positive action N/C solenoid monitoring contacts and door monitoring contacts
  • Locking force up to 1,300 N compliant with EN ISO 14119
  • Four actuation directions with approach speed up to 20 m/min
  • Safe series connection with Flexi Loop diagnostics
  • IP67 rated enclosure for harsh environments
  • Low coding level actuator compliant with Type 2 safety requirements
Professional Installation Requirements
  • Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
  • Industrial safety interlocking for machinery and process protection
  • Access control in hazardous areas
  • Safety door locking in manufacturing and automation environments
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Low power consumption (≤ 8 W) supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK i10-E0354 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and process protection applications.
