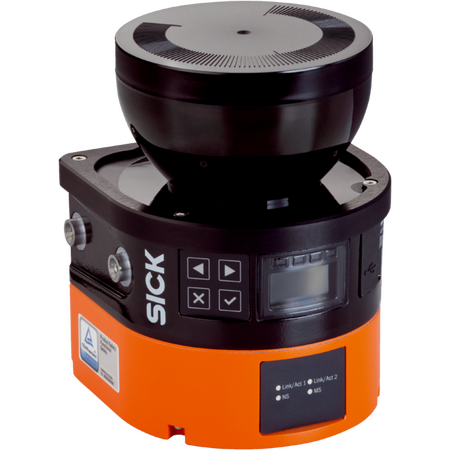

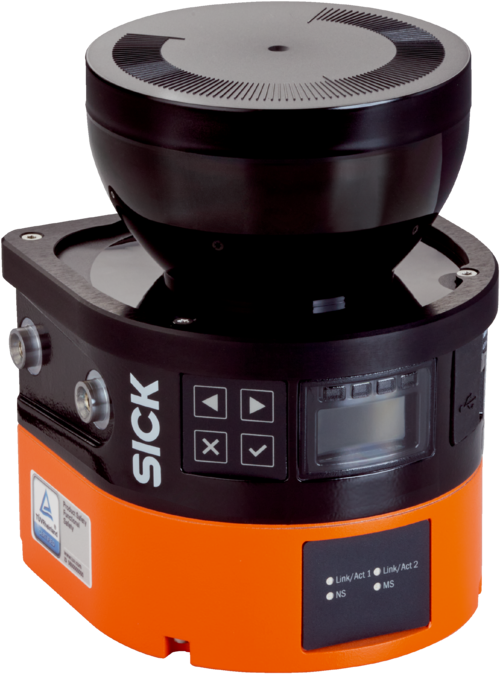

Safety Laser Scanner 4m Protective Range 275° Scanning Angle SICK
The Safety Laser Scanner is designed for outdoor safety monitoring and industrial automation, featuring a protective field range of 4 m and a wide scanning angle of
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Laser Scanner, Outdoor Safety Scanner, EtherNet/IP Safety Scanner, Industrial Safety Laser Sensor
Technical Specifications
- Dimensions (H x L x W): 151mm x 115mm x 115mm
- Weight: 2.5 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Up to 8 simultaneously monitored fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution of 50 mm or 70 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling functions
- EtherNet/IP™ industrial network with 8 safety outputs via network
- Graphic color display with LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -25 °C to +50 °C
- High ambient light immunity to halogen light (12,000 lx) and sunlight (40,000 lx)
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper network integration.
Applications
- Outdoor safety monitoring
- Industrial automation safety
- Perimeter protection
- Hazardous area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and scratch-resistant optics reduce replacement frequency and waste
- Low power consumption of 7.2 W supports energy-efficient operation
- Long mission time of 20 years reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MICS3-CBUZ40IZ1 outdoorScan3 Pro EtherNet/IP Safety Laser Scanner is available for immediate purchase, ideal for outdoor industrial safety and automation applications.
