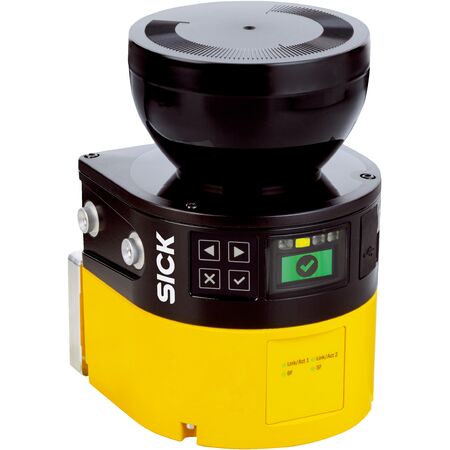

Safety Laser Scanner microScan3 Pro | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 Pro is designed for indoor industrial safety monitoring, featuring a protective field range of up to 9 meters and a 275° scanning angle. With the ability to monitor up to 4 fields simultaneously and a fast response time of 115 ms, it ensures reliable collision protection and machine safeguarding in automated environments. Built for durability with an IP65 rated aluminum housing, this scanner is perfect for factory automation and robotics safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - PROFINET
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m on reference target
- Number of simultaneously monitored fields: up to 4
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded connector
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration interface: USB 2.0, Mini-USB, Ethernet
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 8.4 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated PROFINET and PROFIsafe communication protocols
- Graphic color display with LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Fast response time of 115 ms and multiple safety functions including restart interlock and safe contour detection
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance with safety standards.
Applications
- Indoor industrial safety monitoring
- Collision protection in automated environments
- Machine safeguarding and perimeter protection
- Factory automation and robotics safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables safer automation reducing risk of accidents and associated environmental hazards
- Energy-efficient operation with low power consumption of 8.4 W
- Durable design reduces waste through long service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Pro PROFINET Safety Laser Scanner MICS3-CCAZ90LZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
