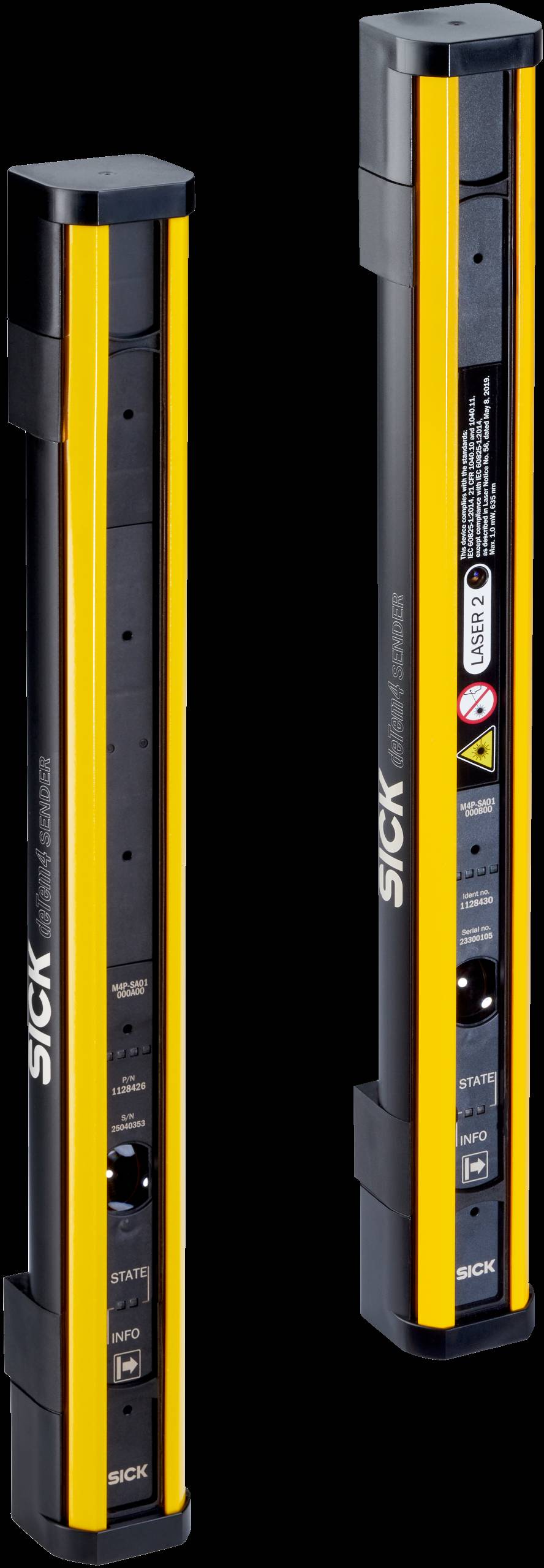

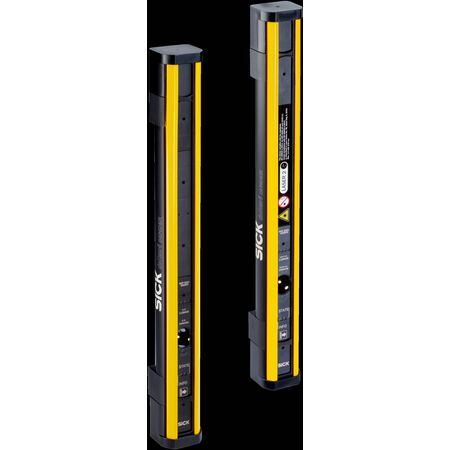

Safety Light Beam Sensor deTem | 90m Scanning Range | PL e, SIL 3 Safety Level | by SICK
The deTem Safety Light Beam Sensor is designed for automated material flow access protection and human-material differentiation in industrial environments. With a large scanning range of up to 90 meters and advanced features like remote diagnosis via IO-Link and NFC, this sensor ensures optimal safety monitoring in manufacturing and logistics. Built for reliability, it complies with stringent safety standards, making it an essential tool for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Beam Sensor deTem | 90m Scanning Range | PL e, SIL 3 Safety Level | by SICK
Brand: SICK
SKU: 1128434
Alternatively Known As: Safety light beam sensor, Access protection sensor, Human-material differentiation sensor, Industrial safety sensor
Technical Specifications
- Protective operation, beam coding, restart interlock, external device monitoring (EDM)
- Diagnosis via visual display, application diagnostic output (ADO), smartphone app via NFC, PC software via IO-Link and DMM4
- Safety level: PL e, SIL 3, Type 4
- Number of beams: 1
- Scanning range: 90 m
- Housing material: Aluminum extruded profile
- Connection type: Plug, M12, 5-pin, male connector M12, 8-pin
- Ambient operating temperature: -30 °C to 55 °C
- Enclosure rating: IP65, IP67
- Functional principle: Sender/receiver
- System part: pair
- Type of human-material differentiation: Simple 2-signal muting, Flexible 2- or 4-signal muting
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 1.5 kg
Key Features
- Large scanning range up to 90 m in a compact housing
- Integrated alignment aids with status LEDs and alignment laser visible up to 90 m
- Remote and on-site diagnosis via IO-Link and NFC
- Flexible 2- and 4-signal muting options
- Core variants available for cost-efficient protection
- Standardized connection, operating, and accessories concept
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is recommended to ensure compliance with safety standards and optimal sensor performance.
Applications
- Automated material flow access protection
- Human-material differentiation in industrial environments
- Safety monitoring in manufacturing and logistics
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Digital diagnostics reduce downtime and resource waste
- Efficient safety monitoring supports sustainable industrial operations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK deTem Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automated material flow applications.
