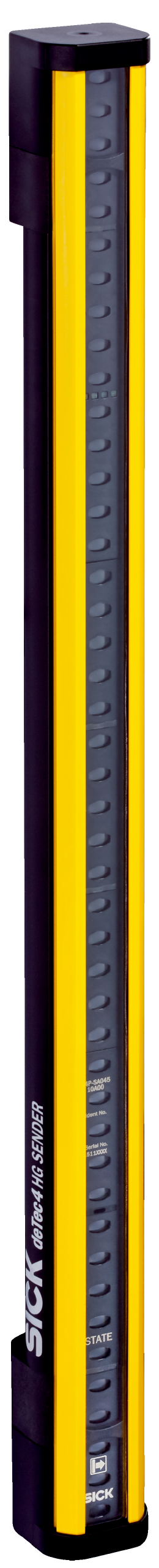

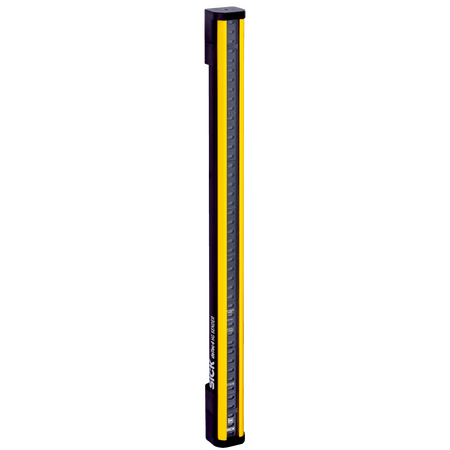

Safety Light Curtain deTec4 C4P-SG13511A00 Sender Protection field height: 1350 mm Resolution: 14 mm
The SICK deTec4 C4P-SG13511A00 Safety Light Curtain Sender offers high safety integrity with a 1350 mm protective field height and 14 mm resolution, ideal for safeguarding industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain deTec4 C4P-SG13511A00 Sender Protection field height: 1350 mm Resolution: 14 mm
Brand: SICK
SKU: 1107175
Alternatively Known As: Safety Light Barrier, Safety Sensor Curtain, Machine Safety Light Curtain, Optical Safety Barrier
Technical Specifications
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Protective field height of 1350 mm with 14 mm resolution
- No blind zones and optical synchronization
- Integrated laser alignment aid for precise setup
- Automatic calibration of protective field width
- Beam coding and smart presence detection
- Cascading capability for extended safety coverage
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- Wide operating temperature range from -30°C to +55°C
- High ingress protection rating IP65/IP67
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is required to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring high safety integrity
- Automation systems needing optical synchronization and cascading
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption of approximately 2.03 W
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK Safety Light Curtain deTec4 C4P-SG13511A00 Sender is available for immediate purchase, ideal for industrial safety applications requiring high reliability and precision.
