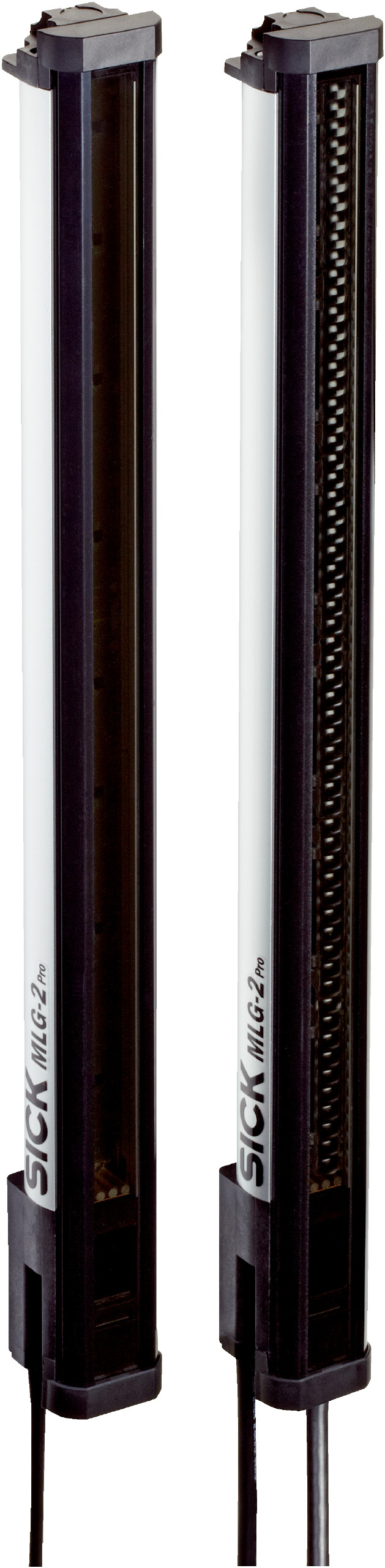

Safety Light Curtain MLG20A-1180R10501 | Pro Version | 60 Beams & IP65/IP67 Rated | by SICK
The Safety Light Curtain MLG20A-1180R10501 is designed for precise object detection and measurement in industrial automation. With a pro version featuring 60 beams and a minimum detectable object size of 20 mm, it operates in standard, transparent, and dust-resistant modes. Ideal for safety applications, this curtain ensures high measurement accuracy and robust protection with its IP65/IP67 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Beam separation: 20 mm
- Number of beams: 60
- Detection height: 1180 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Light source: LED, Infrared light (850 nm)
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58 mA
- Power consumption receiver: 132 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 (5-pin, 8-pin), M12 female connector (4-pin, D-coded)
- Enclosure rating: IP65, IP67
- Response time: 5.9 ms
- Maximum range: 7 m
- IO-Link V1.1 interface with 230.4 kbit/s data rate
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Dimensions (H x L x W): 1180mm x 50mm x 50mm
- Weight: 2.65 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 60 beams
- Minimum detectable object size of 20 mm
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- IO-Link V1.1 interface with 230.4 kbit/s data transmission rate
- QuickFix brackets included for easy installation
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment, secure mounting, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for safety and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in production
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG20A-1180R10501 safety light curtain is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
