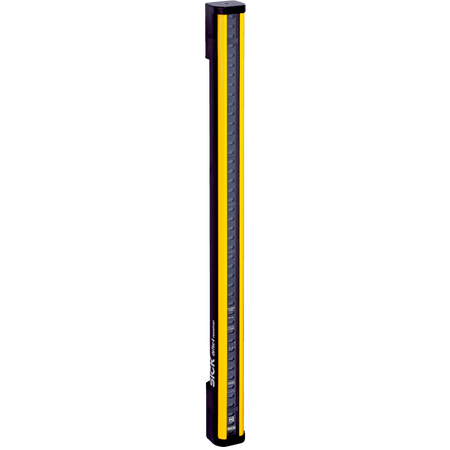

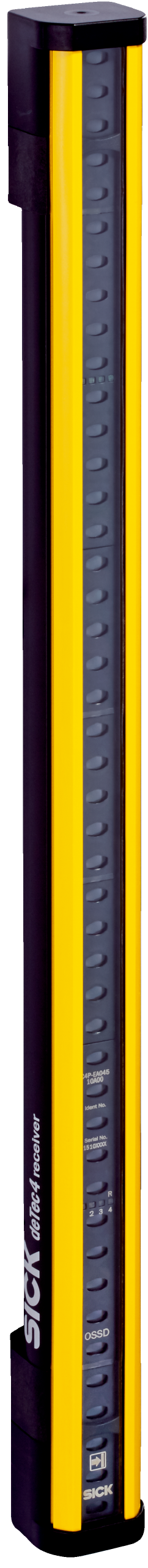

Safety Light Curtain Receiver deTec4 14 mm Resolution 20 m Scanning Range Variant-8 SICK

BRAND: SICK
SKU: 1220106
$6,066.40 List price: $7,624.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
The Safety Light Curtain Receiver deTec4 is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of 20 m.

Alternatively Known As: Safety Light Curtain Receiver, Industrial Safety Sensor, deTec4 Receiver

Technical Specifications
  • Product version: deTec4
  • Resolution: 14 mm
  • Scanning range: 20 m
  • Protective field height: 1,650 mm
  • Response time: 19 ms (Uncoded), 42 ms (code 1 or code 2)
  • Safety type: Type 4 (IEC 61496-1)
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (ISO 13849-1)
  • Performance level: PL e (ISO 13849-1)
  • PFHD single device: 15.3 x 10^-9
  • PFHD cascade with one guest: 30.5 x 10^-9
  • PFHD cascade with two guests: 45.6 x 10^-9
  • Mission time: 20 years (ISO 13849-1)
  • Safe state on fault: At least one OSSD is OFF
  • System connection: M12 male connector, 5-pin or 8-pin
  • Extension connection: M12 female connector, 5-pin or none
  • Configuration: DIP switch on system plug
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 V to 28.8 V)
  • Power consumption: 4.92 W
  • Output type: PNP semiconductor, short-circuit protected
  • Output current per OSSD: ≤ 500 mA
  • Application diagnostic output: PNP semiconductor, short-circuit protected
  • Enclosure rating: IP65 and IP67 (IEC 60529)
  • Operating temperature: -30 °C to +55 °C
  • Storage temperature: -30 °C to +70 °C
  • Humidity: 15% to 95%, non-condensing
  • Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
  • Shock resistance: 15 g / 6 ms
  • Housing material: Aluminum extruded profile
  • Dimensions (H x L x W): 1650mm x 40mm x 50mm
  • Weight: 3 kg
Key Features
  • Type 4 safety light curtain receiver with 14 mm resolution
  • Protective field height of 1,650 mm and scanning range of 20 m
  • No blind zones with optical synchronization
  • Automatic calibration of protective field width
  • Beam coding and restart interlock features
  • External device monitoring (EDM) and cascading capability
  • Smart presence detection and differentiation between person and material
  • 2-signal muting and Smart Box Detection
  • LED display elements with synchronization status indication
  • Application diagnostic output (ADO), IO-Link, and NFC support
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and optimal safety.
Applications
  • Industrial safety applications in normal industrial environments
  • Machine safeguarding and personnel protection
  • Use in automated production lines requiring high safety integrity
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable aluminum housing ensures long product life reducing waste
  • Low power consumption of 4.92 W reduces energy usage
  • Complies with RoHS regulations limiting hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK C4P-EA16511C00 deTec4 safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
