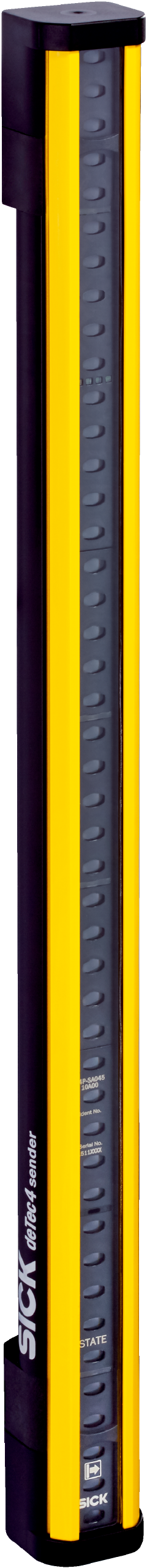

Safety Light Curtain Sender deTec4 Type 4 Safety 14mm Resolution SICK
The Safety Light Curtain Sender deTec4 is designed for industrial safety applications, featuring a 14mm resolution and a protective field height of 750mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, deTec4 Safety Sensor, Industrial Safety Light Barrier
Technical Specifications
- Product version: deTec4
- Resolution: 14 mm
- Protective field height: 750 mm
- Scanning range: 20 m
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 1.68 W typical
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1, wavelength 650 nm visible red light
- System connection: M12 male connector (5-pin or 8-pin)
- Extension connection: M12 female connector (5-pin) optional
- Configuration: DIP switch on system plug
- Display: LEDs
- Dimensions (H x L x W): 750mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance Level e
- 14 mm resolution with 750 mm protective field height
- Scanning range up to 20 m with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capability
- LED display elements for status indication
- Robust aluminum extruded profile housing
- Protection class III with IP65 and IP67 enclosure rating
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper alignment and compliance.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 1.68 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

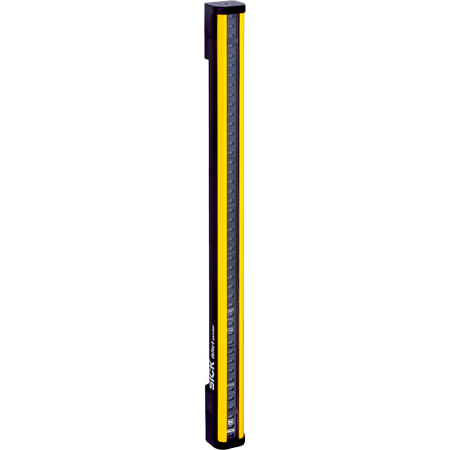

The SICK C4P-SA07511A00 deTec4 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable machine safeguarding.
