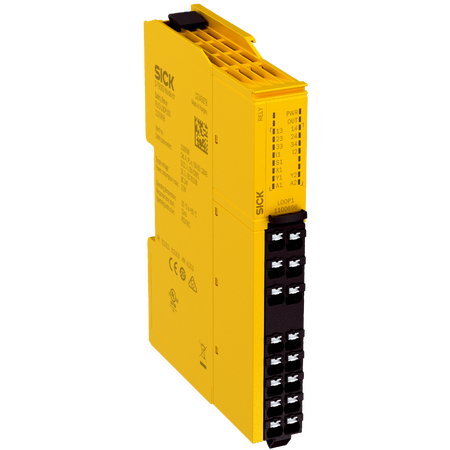

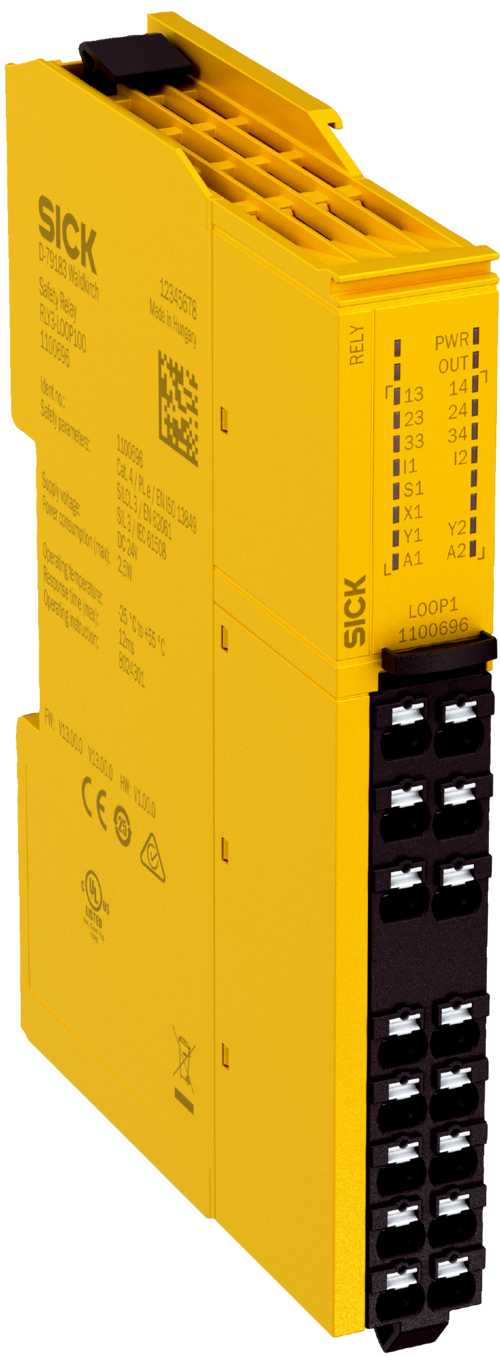

Safety Relay Evaluation Unit RLY3-LOOP100 SIL 3 Certified IP20 Enclosure SICK

BRAND: SICK
SKU: 1100696
$919.30 List price: $1,155.50
+ −
30 Days Return Electricians Unlock Trade Access
The RLY3-LOOP100 Safety Relay Evaluation Unit is designed for safety-related monitoring, featuring SIL 3 certification and an IP20 enclosure.
Technical Specifications
  • Supply voltage: 24 V DC (16.8 V to 30 V)
  • Power consumption: ≤ 2.5 W
  • Safety inputs: 2 safety inputs plus 1 input for reset pushbutton or external device monitoring
  • Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 1 test pulse output (not safe)
  • Response time for enabling current paths: 79 ms
  • Contact material: Silver alloy, gold flashed
  • Switching voltage range: 10 V AC/DC to 230 V AC/DC
  • Switching current: 10 mA to 6 A
  • Total current: 12 A
  • Mechanical life: 10 million switching cycles
  • Enclosure rating: IP20
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Air humidity: ≤ 95%, non-condensing
  • Dimensions (H x L x W): 124.6mm x 85.5mm x 18mm
  • Weight: 0.16 kg
Key Features
  • Safety integrity level SIL 3 (IEC 61508)
  • Category 4 (ISO 13849-1) and Performance level PL e (ISO 13849-1)
  • Automatic and manual reset options
  • Front connector with spring terminals
  • LED display elements for status indication
  • Hard wired DIP switch configuration
  • 3 enabling current paths (safe) and 2 application diagnostic outputs (not safe)
  • Test pulse output for system diagnostics
  • Short-circuit protected PNP semiconductor outputs
  • Mechanical life of 10 million switching cycles
  • Overvoltage category III with 6 kV rated impulse withstand voltage
  • Operating temperature range from -25°C to +55°C
  • IP20 enclosure rating
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
  • Evaluation unit for safety-related monitoring
  • Compatible with Flexi Loop safe series connection
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports safety systems that prevent accidents and reduce environmental hazards
  • Low power consumption of ≤ 2.5 W reduces energy use
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK RLY3-LOOP100 Safety Evaluation Unit is available for immediate purchase, ideal for industrial safety monitoring and control applications.
