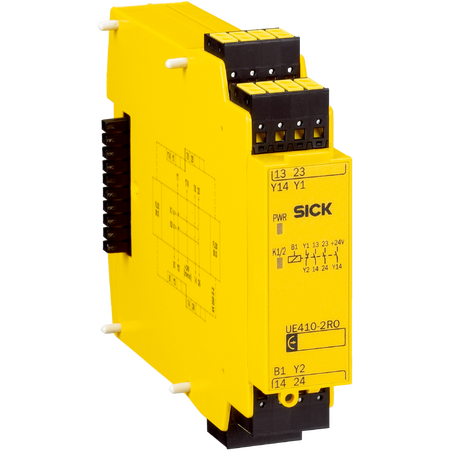

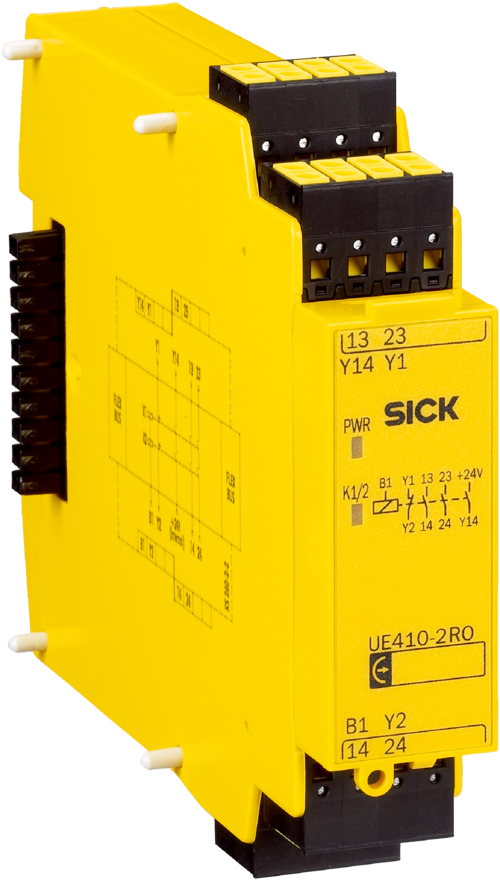

Safety Relay Module SIL 3 Hard Wired Configuration 2 Enabling Current Paths Variant-1 SICK

BRAND: SICK
SKU: 6026144
$660.50 List price: $830.20
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Relay Module SIL 3 is designed for industrial automation safety systems, featuring a hard wired configuration and two enabling current paths with

Alternatively Known As: Safety relay module, SIL 3 relay, industrial safety relay, enabling current relay

Technical Specifications
  • Module type: Relay module
  • Configuration method: Hard wired
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • Outputs: 2 enabling current paths
  • Control inputs: 1 (B1)
  • Enable current contacts: 2 (13/14, 23/24), potential-free NO contacts, positively guided
  • Signaling current paths: 1 (Y14), NO contact, current-limited
  • Check-back current paths: Potential-free NC contacts
  • Connection type: Plug-in screw-type terminals
  • Display elements: LEDs
  • Protection class: III (EN 61140)
  • Voltage supply: Via FLEXBUS+
  • Power consumption: ≤ 1.6 W
  • Overvoltage category: II (EN 61131-2)
  • Switching voltage range: 5 V AC/DC to 253 V AC/DC
  • Current loading: 10 mA to 6 A
  • Output voltage signaling path: 16 V DC to 30 V DC
  • Output current signaling path: ≤ 75 mA
  • Enclosure rating: IP40 housing, IP20 terminals
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -25 °C to +70 °C
  • Air humidity: ≤ 95%, non-condensing
  • EMC: Class A (EN 61000-6-2, EN 55011)
  • Dimensions (H x L x W): 97mm x 121mm x 23mm
  • Weight: 0.16 kg
Key Features
  • Relay module with hard wired configuration
  • Safety integrity level SIL 3 (IEC 61508)
  • Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
  • 2 enabling current paths with potential-free NO contacts
  • 1 signaling current path with NO contact
  • Plug-in screw-type terminals for connection
  • LED display elements for status indication
  • Protection class III (EN 61140)
  • Voltage supply via FLEXBUS+
  • Power consumption ≤ 1.6 W
  • Overvoltage category II (EN 61131-2)
  • Operating temperature range -25 °C to +55 °C
  • Enclosure rating IP40 housing, IP20 terminals
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards.
Applications
  • Industrial automation safety systems
  • Machine safety control circuits
  • Safety-related relay switching applications
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption of ≤ 1.6 W reduces energy usage
  • Durable design minimizes waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK UE410-2RO3 Relay Module is available for immediate purchase, ideal for industrial safety and automation applications.
