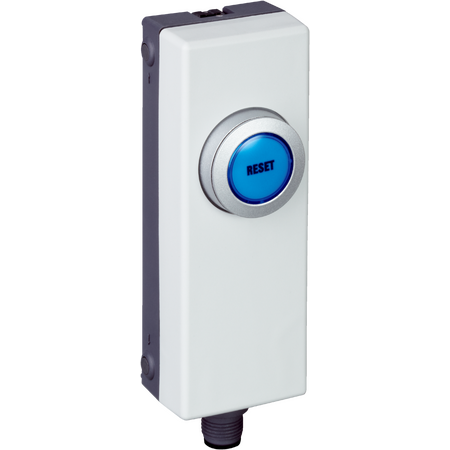

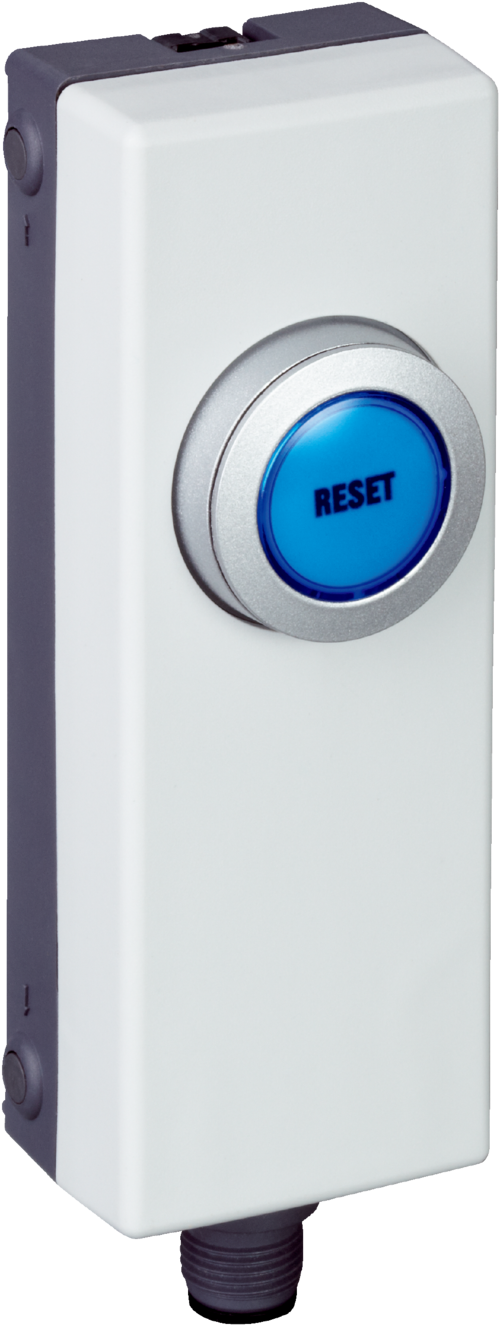

Safety Switch Reset Button IP65 Rated Illuminable Pushbutton SICK

BRAND: SICK
SKU: 6034585
$275.20 List price: $345.90
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Switch with Reset Button is designed for reliable monitoring in industrial safety systems.
Technical Specifications
  • 1 Normally Open (N/O) contact
  • Reset pushbutton rated for 1 million switching cycles
  • Rated operating current: 2 A at 24 V DC
  • Contact material: Silver Nickel with 5 µm gold plating
  • Electrical life: 1 x 10^6 switching cycles
  • Mechanical life of reset pushbutton: 1 x 10^6 cycles
  • Supply voltage: 30 V AC/DC
  • Power consumption: 14 mA at 24 V DC
  • Connection type: Plug connector, M12, 4-pin
  • Coupling nut material: PBT
  • Protection class: III (EN 61140)
  • Enclosure rating: IP65 (EN 60529)
  • Operating temperature: -25°C to +70°C
  • Storage temperature: -25°C to +80°C
  • Dimensions (H x L x W): 123mm x 36mm x 40mm
  • Weight: 0.106 kg
Key Features
  • 1 Normally Open (N/O) contact
  • Illuminable reset pushbutton for clear status indication
  • Suitable for muting applications with UE403
  • Slow action switching element for reliable operation
  • Plug connector M12, 4-pin with PBT coupling nut
  • Protection class III (EN 61140)
  • IP65 rated enclosure for dust and water protection
  • Operating temperature range from -25°C to +70°C
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with safety switch wiring and compliance standards to ensure proper function and safety.
Applications
  • Industrial safety systems requiring reliable safety switch monitoring
  • Muting applications when used with UE403
  • Machinery and equipment safety control
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • Low power consumption at 14 mA reduces energy use
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ER12-SB3C4S01 safety switch is available for immediate purchase, ideal for industrial safety and muting applications.
