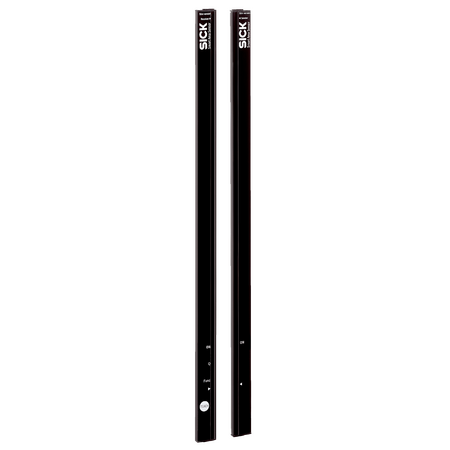

SAS4-S028P3PS1T00 | Automation light grids
The SICK SAS4-S028P3PS1T00 is a slim, high-performance automation light grid sensor featuring 8 parallel infrared beams for reliable object detection and safety applications in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SAS4-S028P3PS1T00 | Automation light grids
Brand: SICK
SKU: 1047063
Alternatively Known As: Automation light grid sensor, Safety light curtain, Industrial light barrier, Presence detection sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Number of beams: 8 parallel beams
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Detection height: 280 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 19 ms
- Operating range: 3 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M8 male connector, 4-pin
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 8mm x 352mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 8 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Teach-in button for easy parameterization
- PNP switching output with output current max 100 mA
- IP65 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure proper alignment and compliance with safety regulations.
Applications
- Industrial automation safety light grid applications
- Object detection and presence monitoring in manufacturing lines
- Access control and perimeter guarding in automated systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces material waste and extends product life
- Robust design minimizes replacement frequency, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SAS4-S028P3PS1T00 Automation Light Grid Sensor is available for immediate purchase. Ideal for industrial automation safety and object detection applications.
