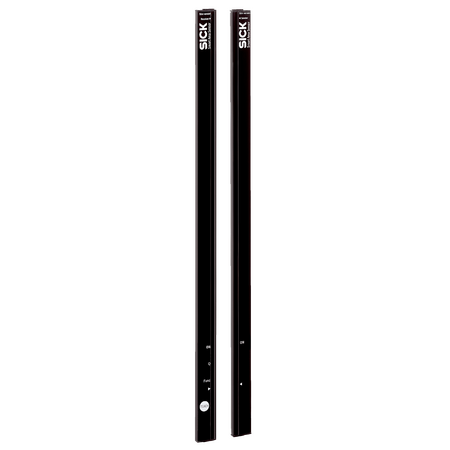

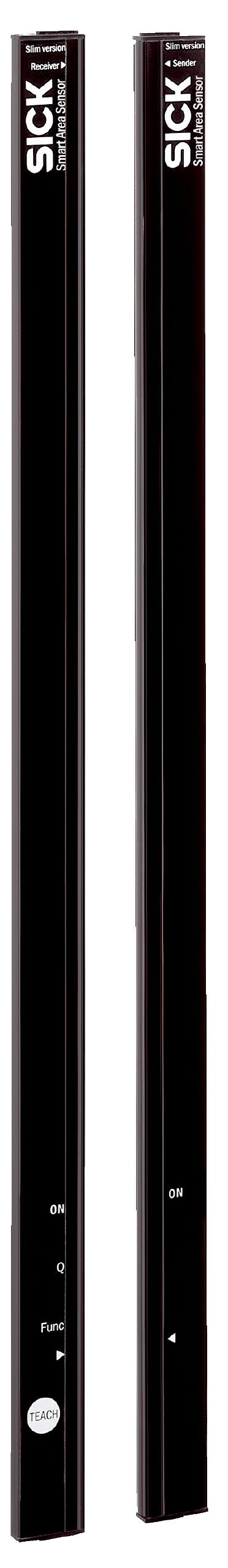

SAS4-S028P3PS1T01 | Automation light grids
The SICK SAS4-S028P3PS1T01 automation light grid sensor features 8 infrared cross beams for precise object detection and safety applications in industrial environments, with robust IP65 protection and easy teach-in parameterization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SAS4-S028P3PS1T01 | Automation light grids
Brand: SICK
SKU: 1214138
Alternatively Known As: Safety light curtain, Automation light grid, Infrared safety sensor, Light beam safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm cross beam
- Number of beams: 8
- Detection height: 280 mm
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 57 ms
- Wave length: 950 nm infrared light
- Connection type: Cable with M8 male connector, 4-pin
- Enclosure rating: IP65
- Protection class: III
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 352mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 8 cross beams
- Minimum detectable object size of 25 mm
- Slim optical light exit design
- Teach-in button for easy parameterization
- PNP switching output with 100 mA max output current
- IP65 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure electrical connections for optimal safety performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and access control
- Object detection in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces need for frequent replacements
- Robust design minimizes electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SAS4-S028P3PS1T01 automation light grid sensor is available for immediate purchase, ideal for industrial safety and automation applications.
