SAS4-S028P3PS1W00 | Automation light grids

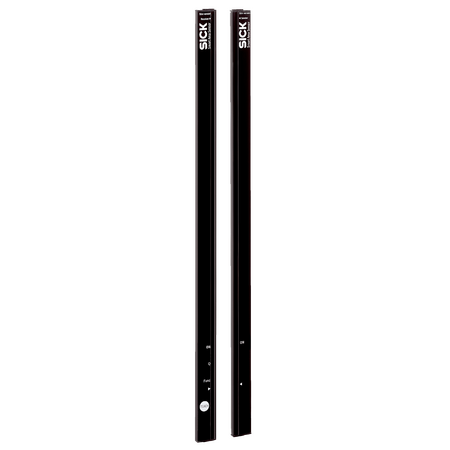

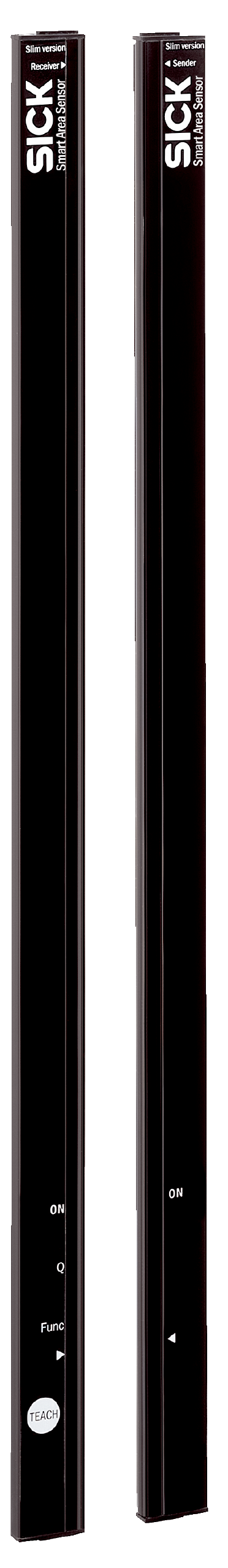

The SICK SAS4-S028P3PS1W00 Automation Light Grid is a high-performance safety sensor with 8 parallel infrared beams, designed for industrial automation and machine guarding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SAS4-S028P3PS1W00 | Automation light grids
Brand: SICK
SKU: 1212471
Alternatively Known As: Safety light curtain, light grid sensor, automation light barrier, machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Number of beams: 8
- Detection height: 280 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: PNP
- Inputs: Teach-in input (receiver), Test input (sender)
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 500 kHz
- Maximum range: 4 m
- Operating range: 3 m
- Response time: 19 ms
- Shock resistance: 10 g
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 100,000 lx, Indirect 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 352mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 8 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Infrared light source with 950 nm wavelength
- Supply voltage DC 24 V ± 20%
- Output 1 active when light beam is interrupted
- PNP switching output with 100 mA max output current
- IP65 rated enclosure for dust and water protection
- LED indication and optical synchronization
- Shock resistance 10 g and vibration resistance 5 g
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable IP65 housing reduces need for frequent replacements
- Supports safer automation reducing workplace accidents
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SAS4-S028P3PS1W00 Automation Light Grid is available for immediate purchase. Ideal for industrial automation and safety applications.
