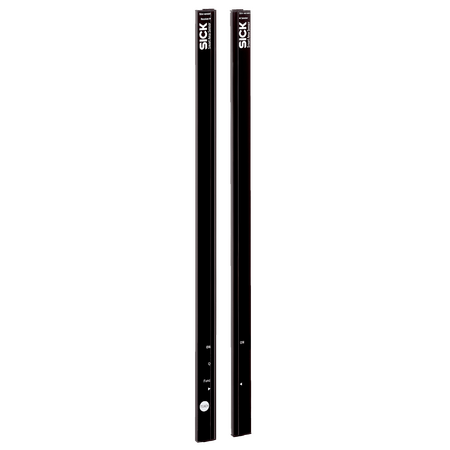

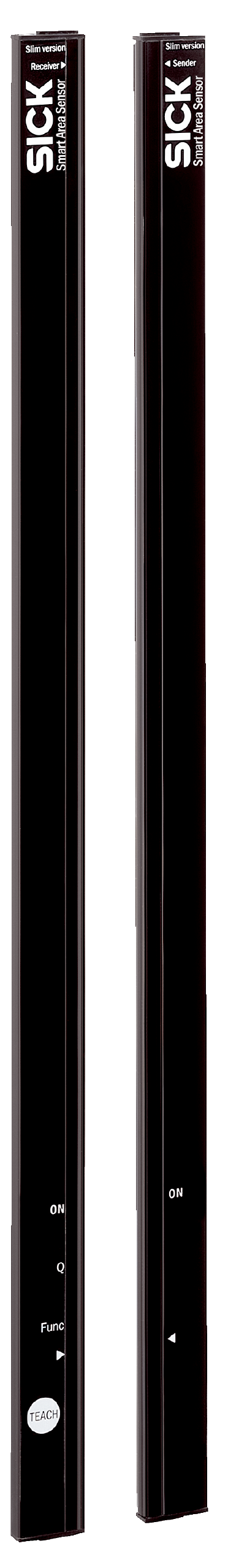

SAS4-S060N3PS1T0D | Automation light grids
The SICK SAS4-S060N3PS1T0D automation light grid features 16 infrared cross beams for reliable object detection and safety in industrial automation applications, with robust IP65 protection and easy teach-in parameterization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SAS4-S060N3PS1T0D | Automation light grids
Brand: SICK
SKU: 1209171
Alternatively Known As: Safety Light Curtain, Automation Light Grid, Infrared Light Barrier, Machine Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm cross beam
- Beam separation: 40 mm
- Number of beams: 16
- Detection height: 600 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: NPN
- Initialization time: 1 second
- Response time: 57 ms
- Operating range: 3 m
- Maximum range: 4 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M8 male connector, 4-pin
- Protection class: III
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 672mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle
- 16 cross beams with 40 mm beam separation
- Detection height of 600 mm
- Slim optical light exit design
- Teach-in button for parameterization
- Automatic teach and alignment aid included
- NPN switching output with output current max 100 mA
- IP65 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light grids and electrical systems to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Object detection in manufacturing lines
- Access control in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces need for frequent replacements
- IP65 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SAS4-S060N3PS1T0D automation light grid is available for immediate purchase, ideal for industrial safety and automation applications.
