Satellite/Terrestrial Amplifier | 5-1000 MHz | 20-30 dB Gain | Compact Design by Matchmaster
Satellite/terrestrial amplifier with 5-1000 MHz frequency range and 20-30 dB adjustable gain—ideal for homes and offices. Built for enhanced signal strength, with a compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

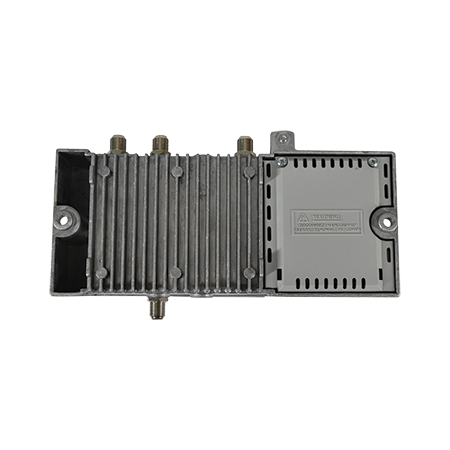

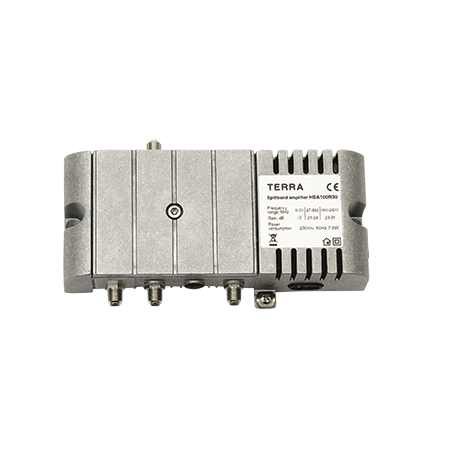

Product Name/Title: Satellite/Terrestrial Amplifier
Brand: Matchmaster
SKU: 10MM-HSA100
Alternatively Known As: Satellite Amplifier, Terrestrial Amplifier, Mast Head Amplifier, TV Signal Booster, Distribution Amplifier
Technical Specifications
- Frequency Range SAT IF: 950-2400MHz
- Frequency Range Terr. TV: 47-862MHz
- Gain SAT IF: 23-31dB (Pre Correction)
- Gain Terr. TV: 21-24dB (Pre Correction) / -4dB Switchable
- Gain Adjustment SAT IF: 10dB
- Gain Adjustment Terr. TV: 18dB
- Slope Adjustment SAT IF: 14/8dB Switchable
- Slope Adjustment Terr. TV: 18dB
- Input and Output Return Loss SAT IF: ≥ 10dB up to 1750 MHz, decreasing to 7dB at 2400 MHz
- Input and Output Return Loss Terr. TV: ≥ 10dB
- Maximum Output Level IMD3=35 dB (EN50083-3) SAT IF: 120dBµV (2 equal carriers)
- Maximum Output Level IMD3≡60dB (DIN45004B) Terr. TV: 115dBµV
- Noise Figure SAT IF: 8dB
- Noise Figure Terr. TV: 8dB
- Mains Power Consumption: 230V ∼ 50/60Hz 7.5W
- Operating Temperature Range: -20° to +50°C
- Dimensions (H x L x W): 47mm x 91mm x 185mm
- Weight: 0.7 kg
Key Features
- Amplifies both satellite and terrestrial services
- Terrestrial stage can be switched to passive if not needed
- DC power pass through to power LNB or masthead amplifier
- Independent gain and slope adjustment for satellite and terrestrial bands
- Foxtel approved (F30672)
- Ventilated power-supply section for better heat dissipation and longer MTBF
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
- Amplification of satellite and terrestrial TV signals for residential and commercial use
- Suitable for mast head and house distribution systems
- Ideal for reducing interference from 4G mobile transmissions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces signal loss and interference, improving energy efficiency of TV reception systems
- Longer MTBF reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.
Available Now
The Matchmaster Satellite/Terrestrial Amplifier is available now for immediate purchase. Ideal for enhancing TV signal quality in residential and commercial distribution systems.
